EMS-100 Fluxgate Magnetometer (Compatible FLC-100)

[Uykusuz]

EMS-100 is a fluxgate magnetometer like FLC-100.

http://www.lugatek.com/?page_id=368

Regards.

[Uykusuz]

Video about EMS-100 vs FLC-100

[bernte_one]

hello what is your price
within shipping to germany
for one unit
and for two units of ems 100
payment via paypal

i see on yt that a circuit and and lcd display is available
is it possible to build a simple mag (not gradiometer or differential mag) with only one ems 100 and the cicuit and lcd that you use

please contact me via pm

[Uykusuz]

Hi,


I sent a pm about price.
We will design a circuit as soon as possible.
As can be seen from the video, EMS-100 is 3 times more precise than FLC-100.
Regards.

[Uykusuz]

Hi

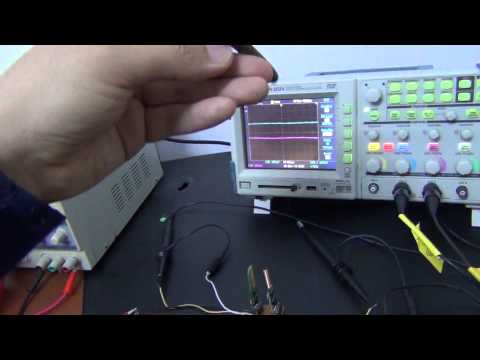

EMS-100 Test Video:

http://www.youtube.com/watch?v=801OBRnfV0I

Regards.

[calebsone]

How much for the pim 2

[bernte_one]

please give us a short info when this sensors are available for sale
including the electronic (datalogger, livestream display)

[Uykusuz]

Hi

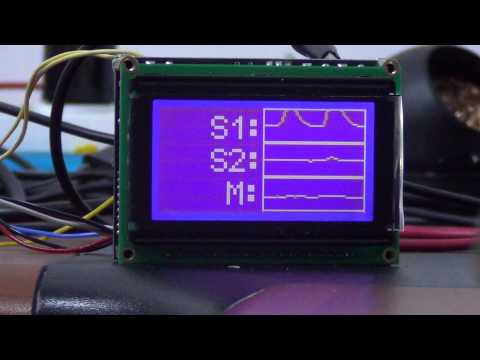

We designed and shared a gradiometer circuit.

Test video:

http://www.lugatek.com/forum/index.php/topic,779.0.html

[bernte_one]

I cant find a circiut on the lugatek forum page
think ist a claer advertising post from you here

so please tell the price you want
for the sensor and the complete mounted circuit board

thes days i have build a diferential magnetomter
with big ferrite core coils

and i dont believe what you show on the video
the circuit reacts indoors to a little plier at 80-90cm??

with my mag i cant test in my garden because theres are fences 2m left and right from the mag which disturbs already the earth megnetic field lines so that i have to go out on the field

so i m very interested bcause i want to see it in real in my own hands

give me some facts
price, delivery to germany, circuit diagramm, pre-programmed controller???

[Krzysztof]

Bernte_one.
Unfortunately.
The resolution is too small. The transition from an analog sensor FLC-100 by DC is too weak, even if it was 24-bit; the sensitivity of the sensor is physically too low.
Add noise and EMI and come out poorly.
Best regards Chris.

[Uykusuz]

Hi,


If you want to see documents, you may register lugatek forums just like geotech forums.


I attached gradiometer circuit here. Hex file is free.


I am using my grdaiometer at low gain. In this case, 80cm is normal. We think use gradiometer with pulse induction metal detectors for true discrimination.

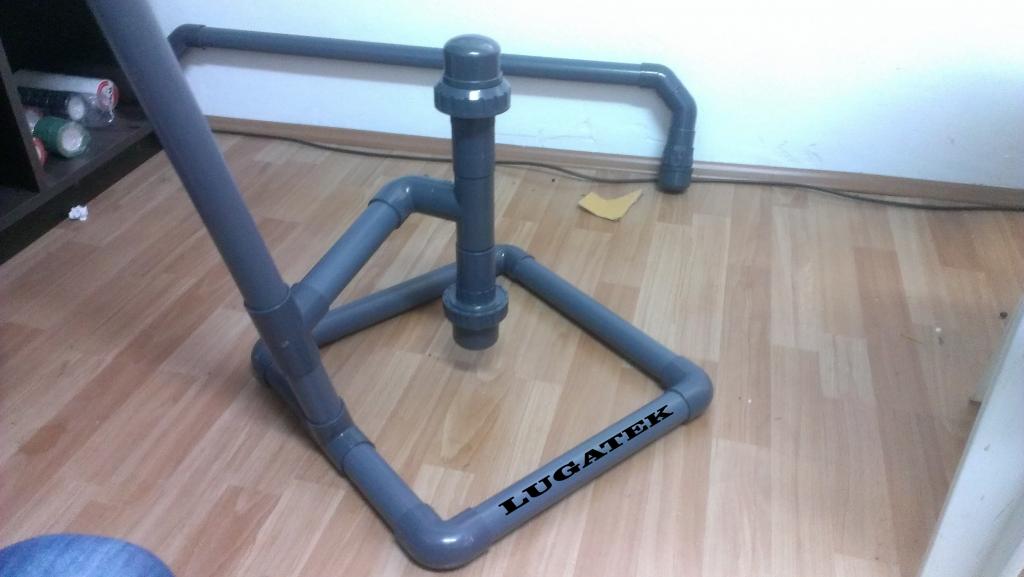

Pulse induction coil + gradiometer design:


For more details, you can follw our PIM-3 project.

gradio.rar

[Orbit]

Hi

We designed and shared a gradiometer circuit.

Test video:

http://www.lugatek.com/forum/index.php/topic,779.0.html

This is sufficient for discrimination great !!

[Krzysztof]

Congratulations, beautiful work.

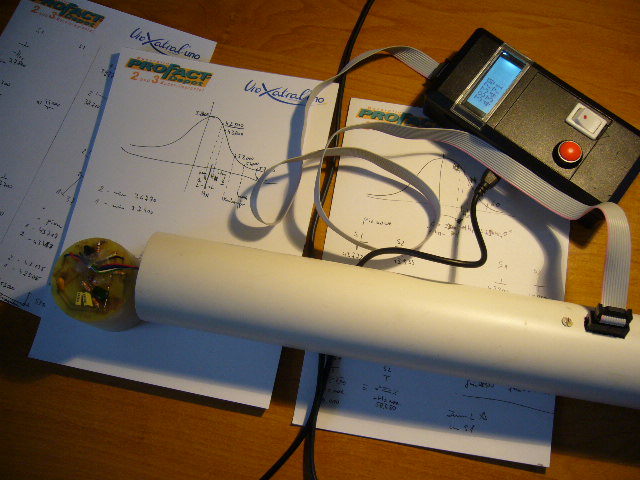

I tested the FLC-100, then I went in the direction of fully digital in MI (magneto inductive).

[Uykusuz]

Thanks to everyone.

Krzysztof, good idea and beautiful work.

[Uykusuz]

Simultaneous PI detector + Magnetometer Test Video:

Used differential EMS-100 and PI detector.
