ML Sovereign XS-2a PRO schematic diagram

[Taktyk]

HI,

I need a schematic for ML Sovereign XS-2a PRO. I have a problem with all metal mode - pin 30 uP - I suspect damage of the port..
Regards

[kt315]

...

[Taktyk]

HI,

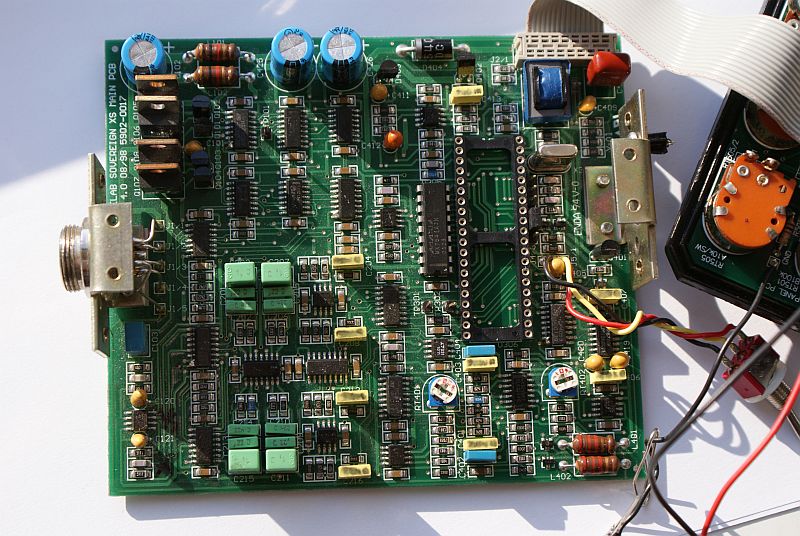

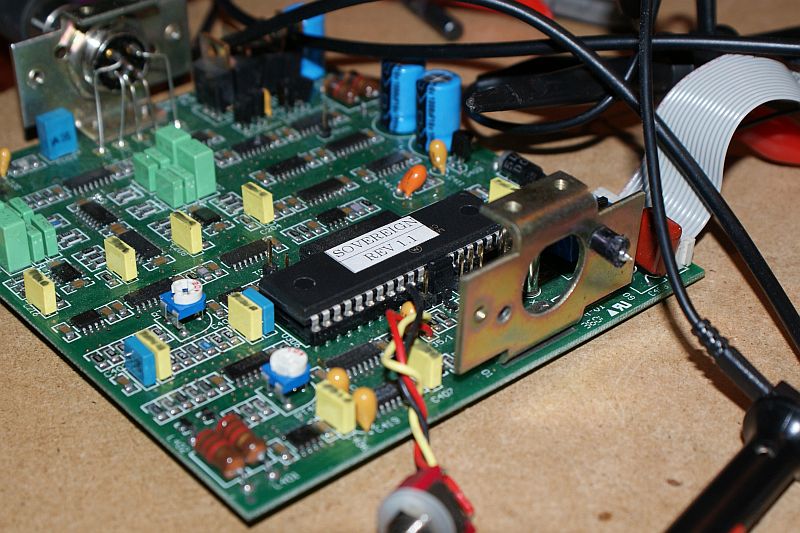

It is, however, slightly different motherboard. Does anyone know what the function of the jumper settings?

Regards

[Sean_Goddard]

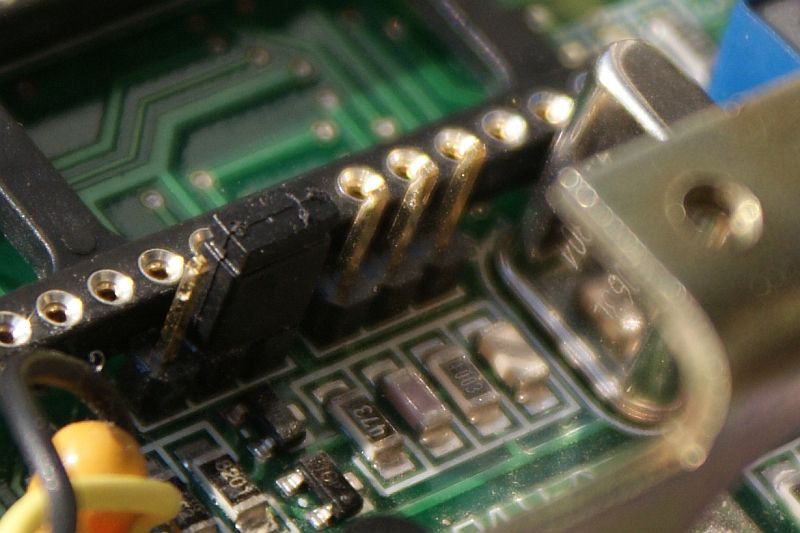

Note sure which is which but....

One is fixed / variable tone the other is Iron Mask Enable / Disable.

I have a spare micro from a scrapped board if you need it Taktyk! Schematic is on it's way to you .

[mel parker]

I have been trying to reach you Mr. Goddard

Don't know if your E-mail filter is dumping my messages.

[keith777]

i don't know if this is of any help to you.......

[Taktyk]

HI,

Yup! Thank you very much.. Unfortunately, the CPU port is damaged. Keith 777, maybe you have a sovereign ML schematic?

Regards
Taktyk

[keith777]

HI,

Yup! Keith 777, maybe you have a sovereign ML schematic?

Regards
Taktyk

these are the only other files i have which i came across some time ago. maybe of some use to your self or someone else.

[scrungy_doolittle]

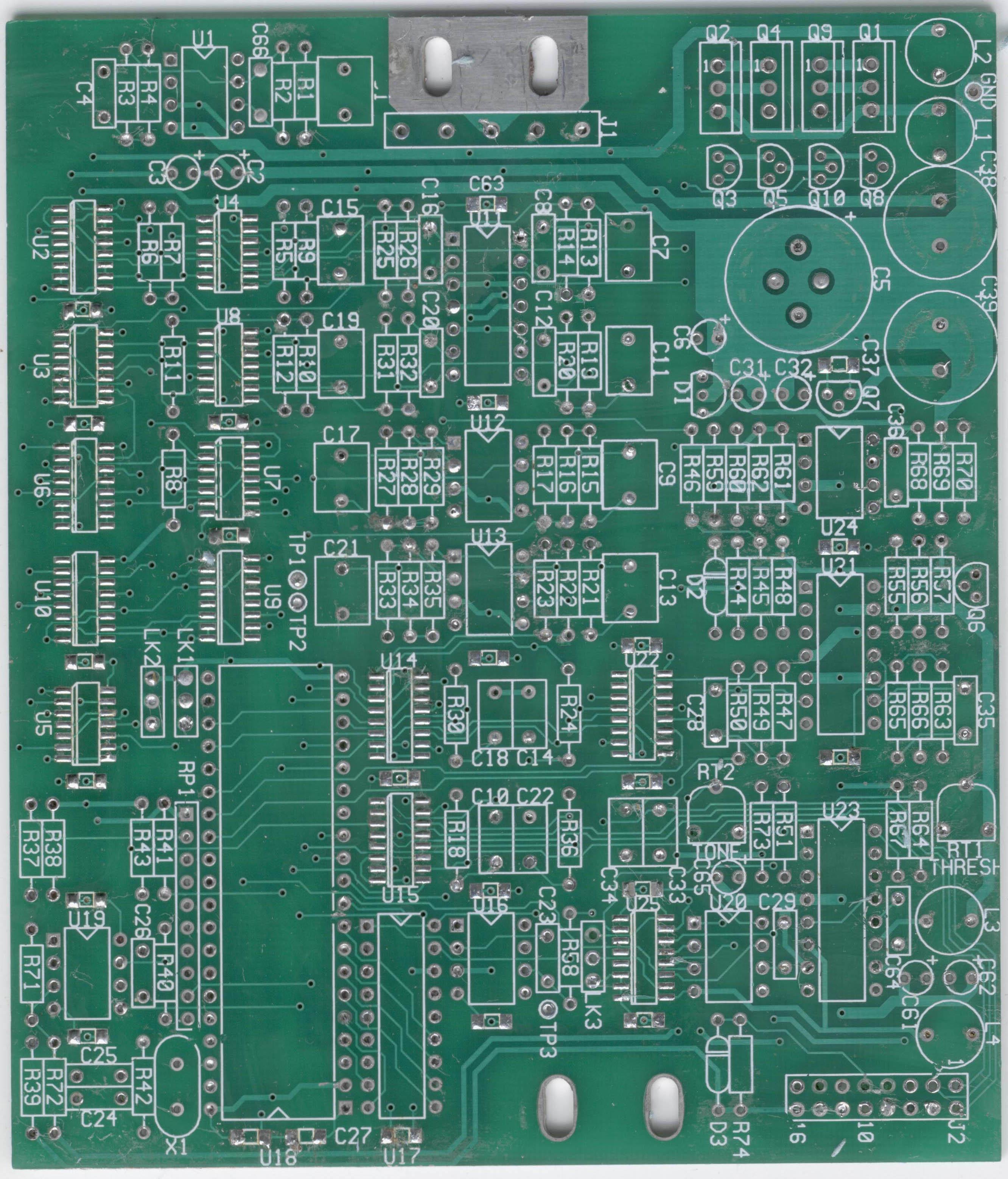

where did you get the pcb layout? What about the other side. And does that document have the schematic in it?
Cheers

[kt315]

[lucafa]

Hello.

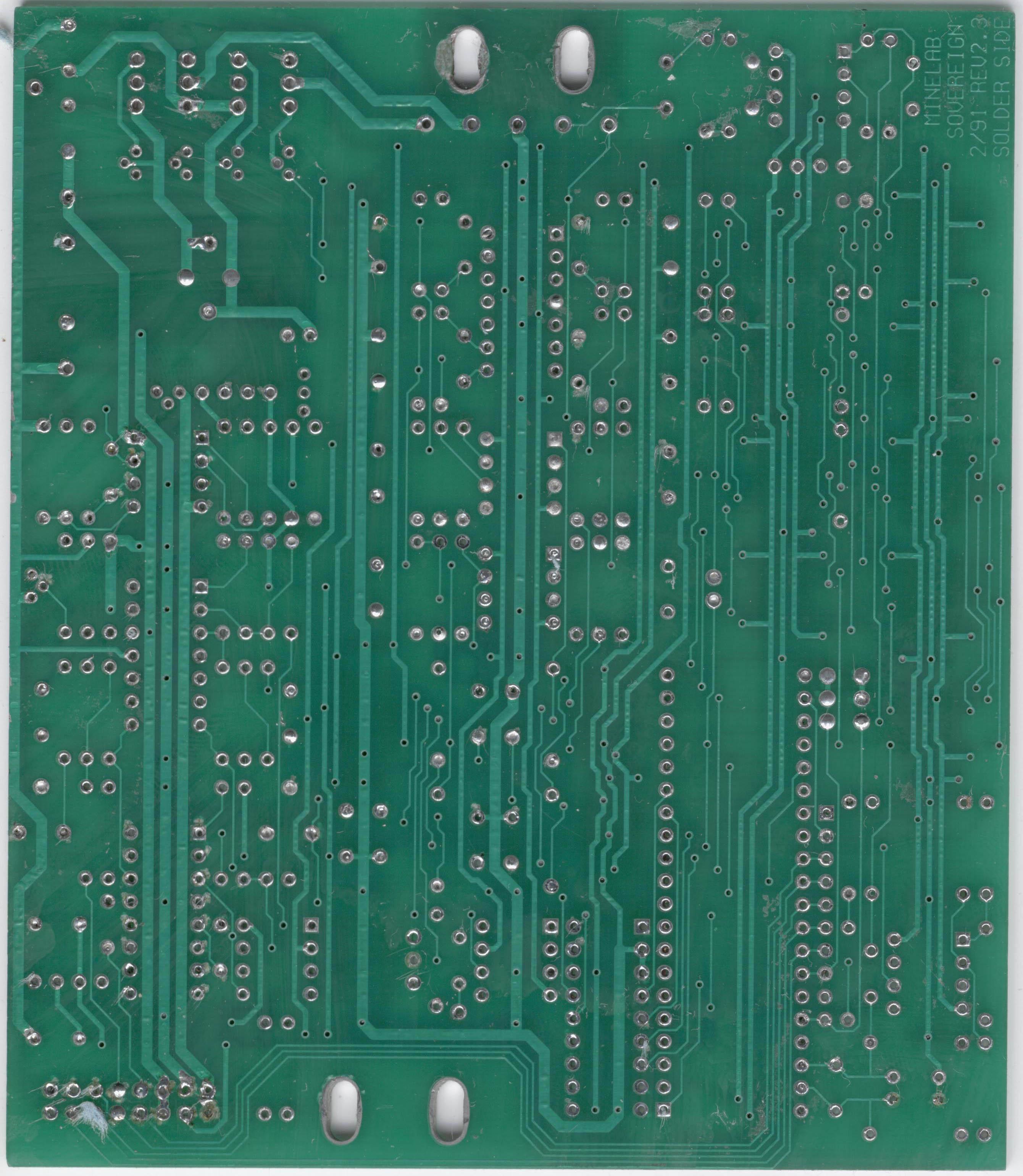

The images of sov1 001 and sov1 002 is the pcb of the first version of the sovereign?
Regards to all.
