which schematic does this circuit belong to?

09-17-2021, 10:31 AM

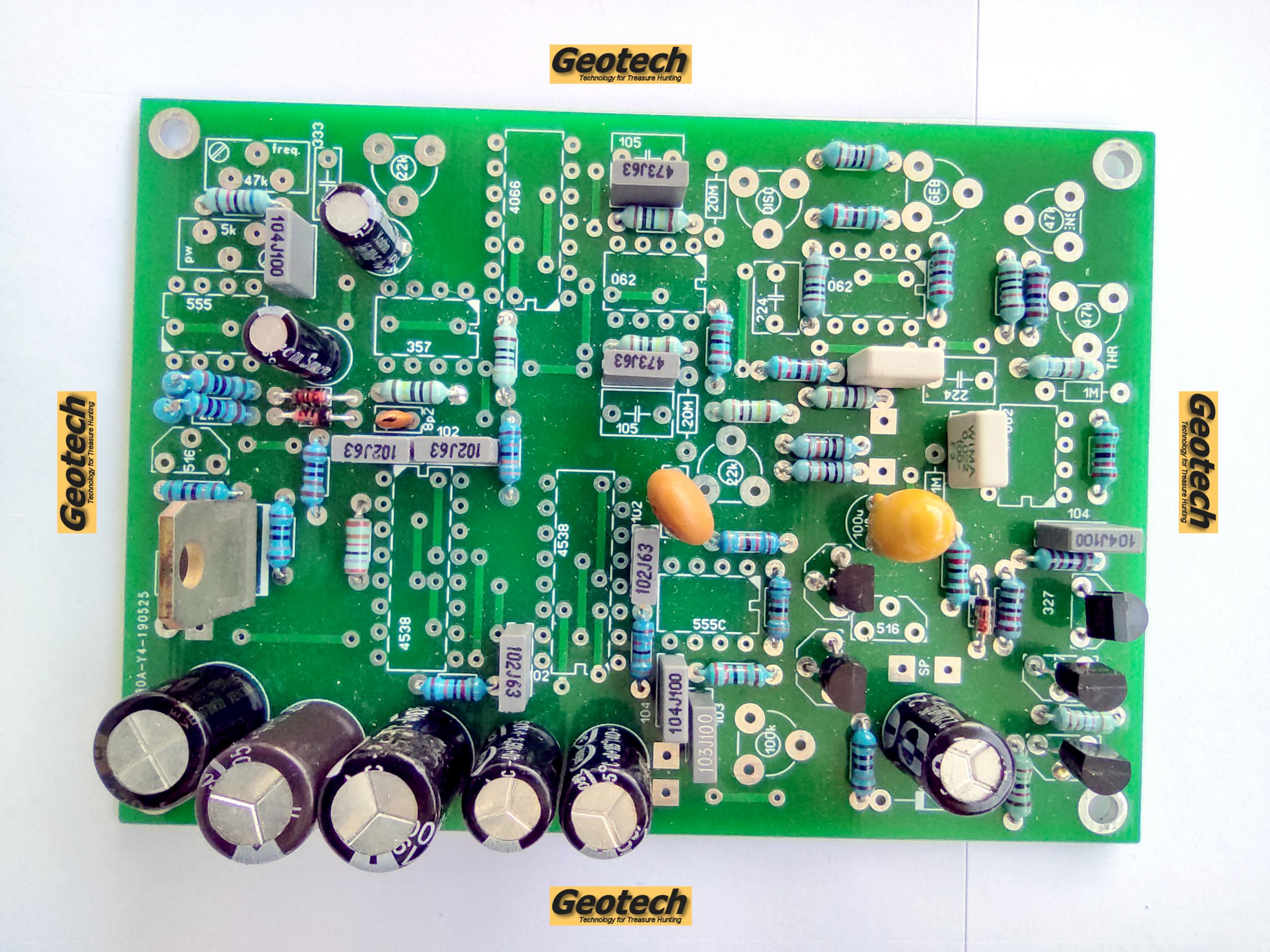

Which circuit does the pcb shown in the picture belong to? Thank you in advance for your help.

Attached Files

Tags: None
kt315

Guru

Join Date: Mar 2005

Posts: 12571

Lithuania [LT]
- Share
- Tweet
#2

09-17-2021, 04:40 PM

what is a designation of MOSFET in TO-220?
Comment
zakari

Junior Member

Join Date: Oct 2016

Posts: 25
- Share
- Tweet
#3

09-18-2021, 03:05 AM

Hi selim

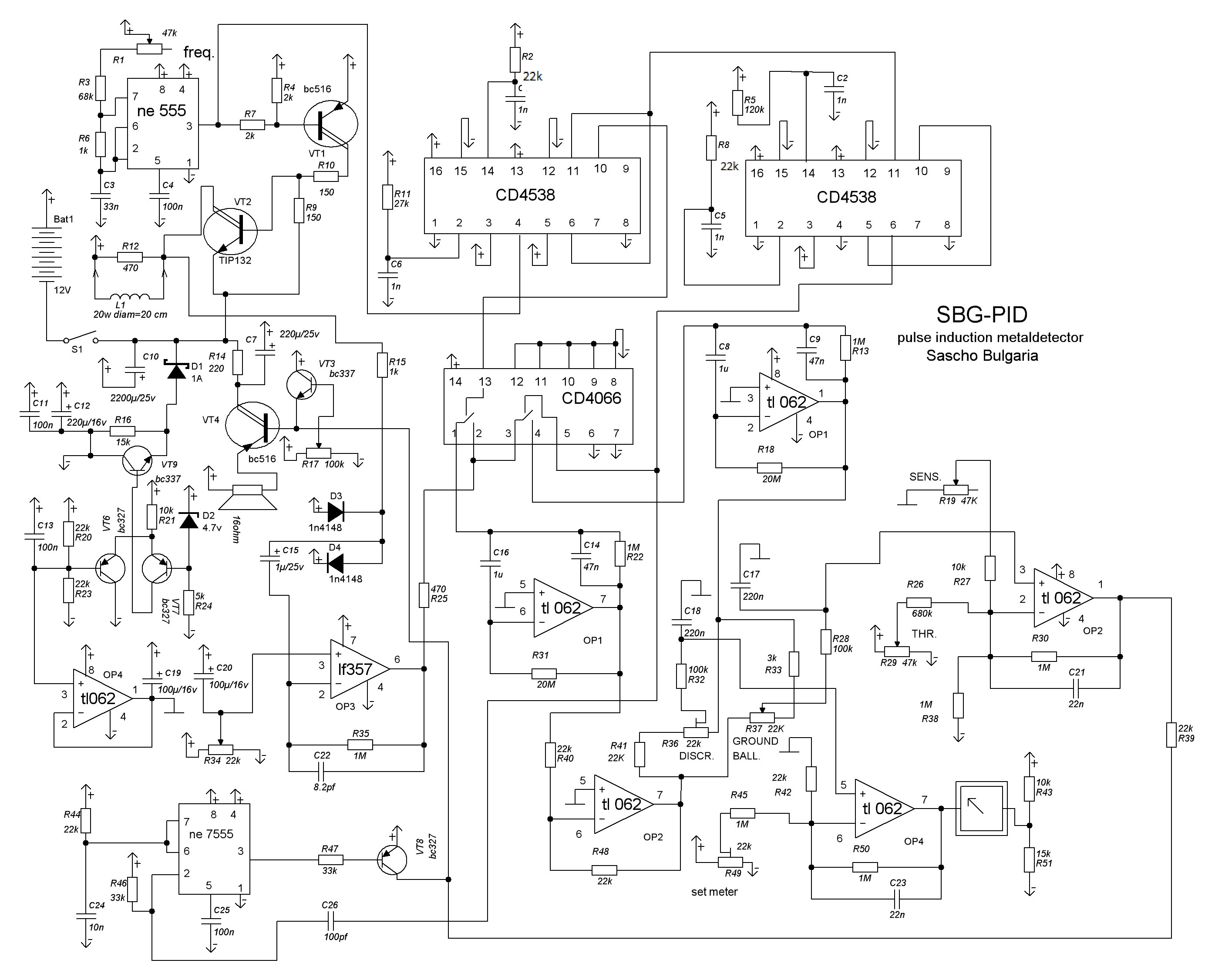

That is sbg_pid
Sasho"s metal detector
Comment
Hink

Junior Member

Join Date: Sep 2021

Posts: 8
- Share
- Tweet
#4

09-26-2021, 08:50 PM
Comment
bernte_one

Guru

Join Date: Jan 2011

Posts: 2145
- Share
- Tweet
#5

09-27-2021, 08:05 AM

i started this in the past but never ended it, seems noone cares of this project
Comment
ZOUjiarui

Guru

Join Date: Feb 2021

Posts: 415

Myanmar [MM]
- Share
- Tweet
#6

10-04-2021, 06:33 AM

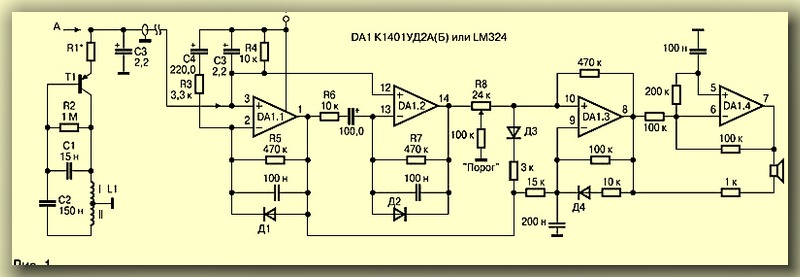

I also found a circuit that my friends need to solve.The original article called it a metal detector hand.But I only saw the schematics.
Comment
bgs

Member

Join Date: Dec 2020

Posts: 39
- Share
- Tweet
#7

10-04-2021, 09:18 AM

This PCB schematic
