Golden Mask One 15/24

[Smirnov-Arta]

Good afternoon,

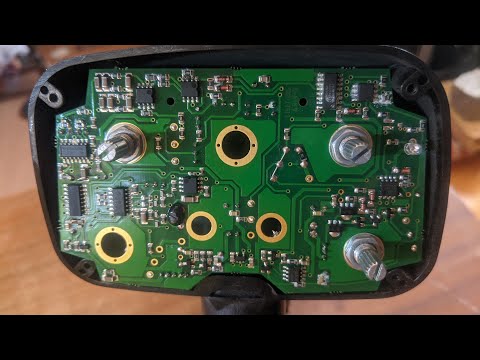

Please tell me, does anyone have a photo of the Golden Mask One 15/24 board?
If you also have a diagram... it would be a miracle!)

[WinstonWolf]

Hi.
I'am sorry, I have got only GM7.
When help for you, I have got chance open this and make foto.
Martin

[Smirnov-Arta]

...

Thank you for your response and suggestion. But GM7 is the "big brother")... and I think it is similar to GM5/6/7. Schematics were previously posted.
I will explain what I am interested in.
Since, GM One15/24, work on single frequencies
I am interested in the organization of the operation of the circuits of these circuits (resonance or non-resonance or resonance at the reference frequency and then its mixing)

[pustareka]

Golden Mask One

Frequency: Single: 8kHz or 15kHz or 24 kHz
Ground Balance: Automatic Ground Balance
Controls: Frequency Shift, Gain, Iron Volume, Sound Volume, LCD Contrast, Back-Light
Search Mode: Motion, One-Tone All Metal, Two-Tone, One Tone with Discrimination
Coils : Double D
Battery: AA NiMH Rechargeable Batteries
Battery Life: 12 Hours
Wireless Headphones: Optional
Headphones plug socket: 6.35 mm - 1/4"
Weight: 1.4 kg with 23x25 cm Search Coil
Warranty: 2 years electronics; 2 years - battery and coil.


Металлоискатель GOLDEN MASK 4 pro
https://clck.ru/3NJED4

[Smirnov-Arta]

...

hi!)
Thanks for the answer+

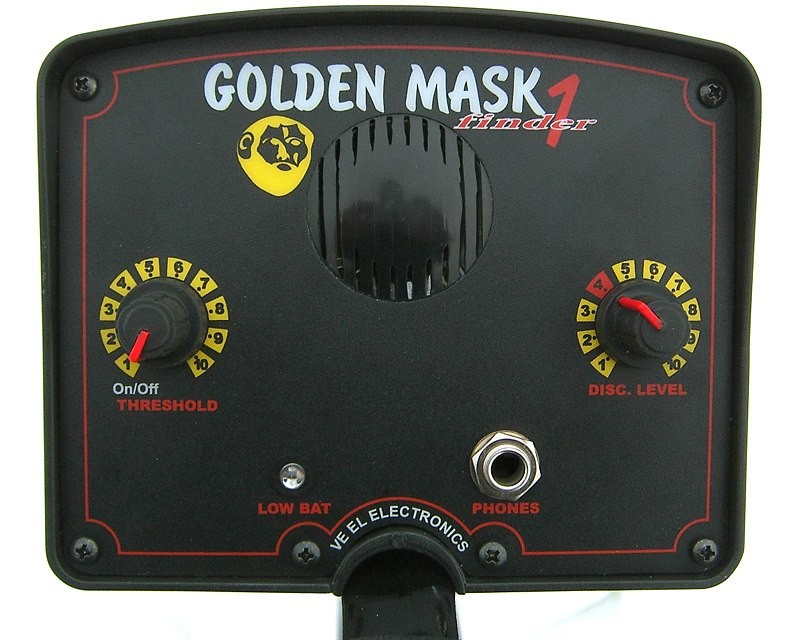

Yes but it's "GM1".

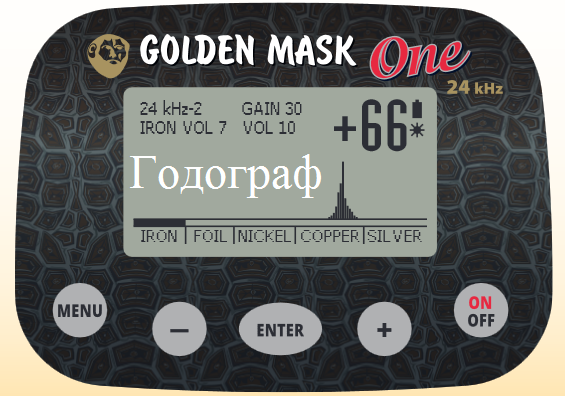

And I asked about "GM ONE"
Or did you mean to say that they "just" attached the VDI module and some software processing to the "One" model from the "1" model?)
https://goldenmaskdetectors.com/user-guides/One-en.pdf

[pustareka]

https://clck.ru/3NJGrL
https://clck.ru/3NJGtQ

No real time digital signal processing. Аnalogue apparatus.
Want full DSP VLFIB hunt Квант ARM Квант Due

https://clck.ru/3NJGmU

[Smirnov-Arta]

...

Hi. The MD that you indicated, yes, thank you, are known, of course. In this case... If that's the case, and it's "just analog," then that's fine. That's what I'd like to do. I'll check it out when he arrives. I just wanted to know in advance...). Thanks again for the answers! +
