Schematics & Spice

[Olly]

Yep, this works exactly the same, but now the output is ground-referenced:

Hi Carl, what program are you using for simulation? It seems a bit prettier than LtSpice.

[Carl-NC]

Schematics are done in Easy-PC (NumberOne.com). They used to sell Easy-Spice, which was a version of SIMetrix Spice, but it's been discontinued. I am actually in the process of switching to KiCad and LTSpice.

[GeoMax]

Hi Carl,

I use DipTrace. It’s a very good program, but I’m quite disappointed with the software developer. Last year, I sent them a six-page A4 document containing bug reports and suggestions for simple productivity improvements. But guess what happened: no reply, no follow-up questions regarding my list, and even three software revisions later, nothing from that list has been implemented. Some of the bugs still haven't been fixed.
While I do intend to finish my current projects in DipTrace, I also want to switch to KiCad. I can see that work on improvements is constantly ongoing there.

[Olly]

Schematics are done in Easy-PC (NumberOne.com). They used to sell Easy-Spice, which was a version of SIMetrix Spice, but it's been discontinued. I am actually in the process of switching to KiCad and LTSpice.

Thanks Carl.

KiCad has come a long way and is now on par with a lot of "professional" level packages. What I really like about it is that it doesn't contain a lot of over complicated bloat like 'Altium' for instance.

Cheers...

[Qiaozhi]

I've used several different ECAD packages, including Easy-PC and DipTrace.

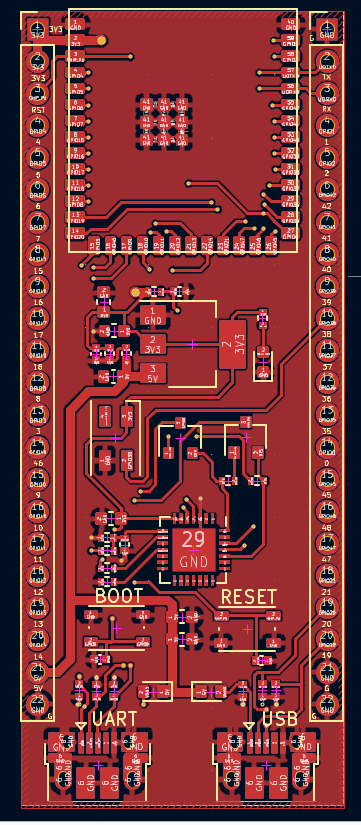

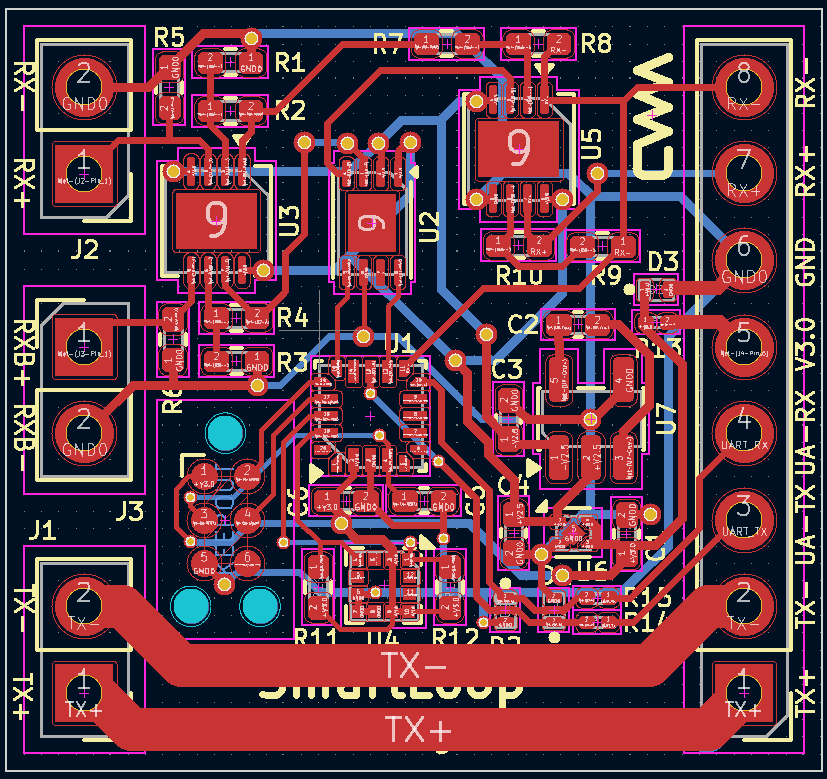

Now I exclusively use KiCad, and LTSpice for simulation. Not only is KiCad FOC, but it doesn't have any design size limitations and runs in Linux, unlike DipTrace.

[ivconic]

[Olly]

Ah, but you see, Linux is only for those that realize its elegant efficiency and pinpoint precision vs the bloat and over complication of the Windows juggernaut....

[ivconic]

Inexperienced young man, let me teach you a useful life lesson!
I am known in close circles as a great admirer of female virtues!
Whenever I hear comments like:
"I prefer brunettes ... I prefer blondes ... I prefer dark skin ... I prefer skinny ... I prefer elegantly plump ... I prefer athletically built..."
and so on;
right from the start it becomes clear to me that the one who "prefer ..." is actually not a real lover of women and that he is a latent fan of the same gender (To put it politely...)! Mmmmmhaahahahahahahahahahahahah!
If you ask me; I DON'T CHOOSE; I PREFER THEM ALL!
I have 10-15 laptops and 4-5 desktops in my house and about 10 current smartphones, with every possible current OS!
And I use ALL of them, as needed and according to the task that is currently on the table!

[Olly]

Touche

[pito]

and whot you have on VP1 and on VP2
