    Fisher F5 coil

    Hello folks!
    I need pinout for Fisher F5 coil.
    Thanks in advance!

    Tags: None
  • #2
    PIN 1 = - RX
    PIN 2 = +RX
    PIN 3 = - TX
    PIN 4 = +TX
    PIN 5 = NC

    Comment

    • #3

      Comment

      • #4
        Fixed and now in a good shape!

        Click image for larger version Name: IMG_0851.jpg Views: 212 Size: 990.4 KB ID: 442144​

        Comment

        • #5
          I'm very happy to hear it!!!
          • Likes 1

          Comment

          • #6

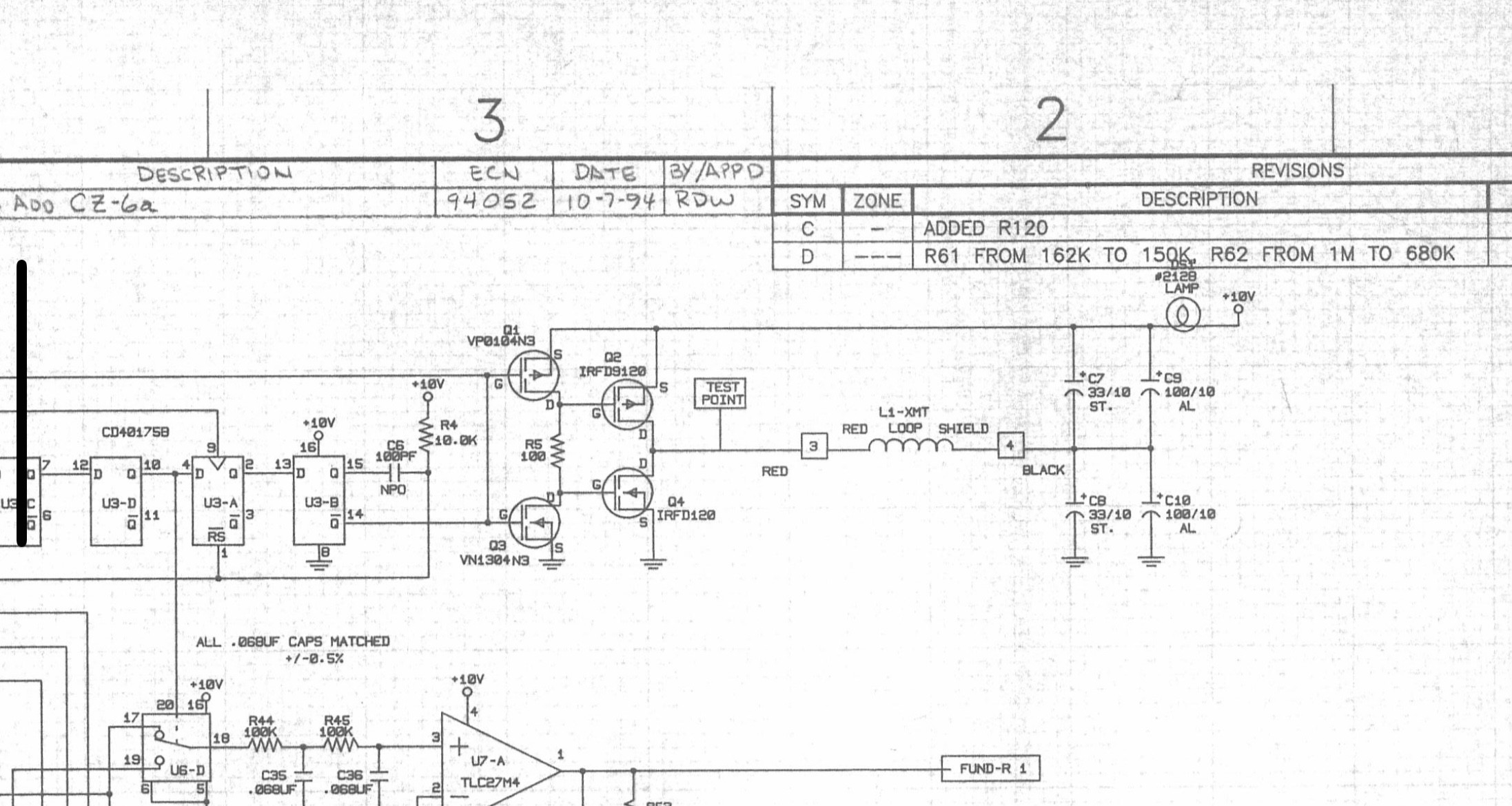

            Does anyone have any information on the winding data of coils for fisher cz5? I'm interested in the exact data of the TX coil.
            In the fisher, the circuit of the transmitting cascade, according to the service manual, is powered by 10V.
            Attached Files

            Comment

            • #7
              See post 7

              Fisher CZ-7a Pro - Geotech Forums
              https://www.geotech1.com/forums/forum/technology/coils/431360-fisher-cz-7a-pro
              Good morning guys, I just bought a Fisher CZ-7a pro Quicksilver with an 8" spider reel. I have been searching but I can't find if the coils of a CZ3D or any other Fisher machine are compatible, if possible I would like to put the 10.5" coil, it is very difficult to find coils for this machine. I don't know if there
              • Likes 1
