[joe san]

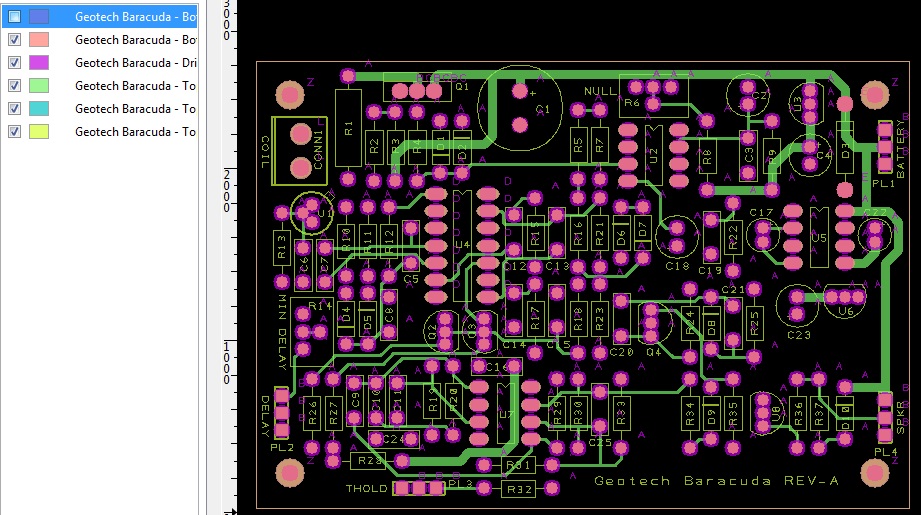

is this correct? i open with gerbv as suggested

[joe san]

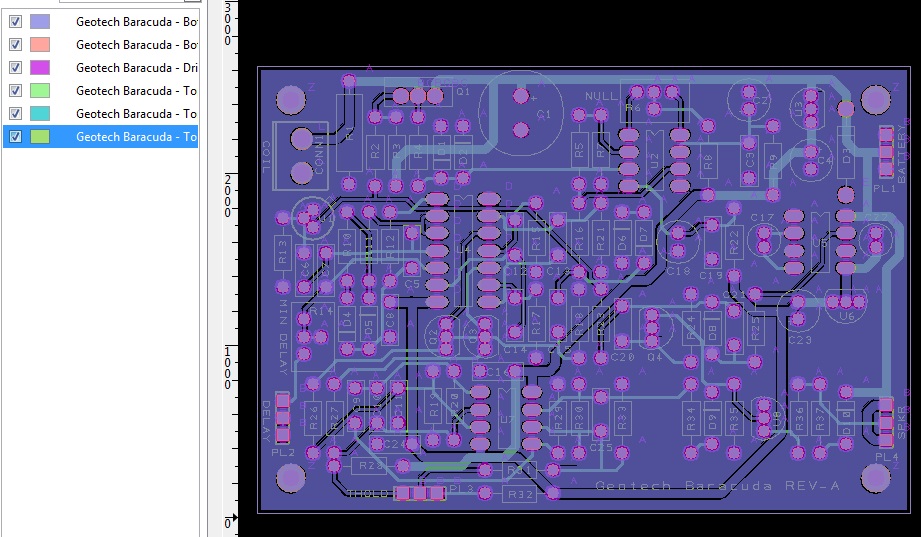

this is all layer

[kt315]

[ATTACH]39376[/ATTACH]

is this correct? i open with gerbv as suggested

if i say this correct or i say this is not correct what that will change?

[Qiaozhi]

[ATTACH]39376[/ATTACH]

is this correct? i open with gerbv as suggested

[ATTACH]39377[/ATTACH]
this is all layer

Looks good to me. Why do you think there's a problem?
Just send the Gerber files off to a board manufacturer, and some nice shiny PCBs will be returned.

[kt315]

George, if somebody is not trusting to people he has to make all himself. thats gold rule.

[Qiaozhi]

George, if somebody is not trusting to people he has to make all himself. thats gold rule.

Very true.
In this case I think he's just confused about the ground plane on the bottom layer. Perhaps he's expecting to see a bunch of tracking, and doesn't know what a ground plane is. We'll have to wait for the reply.

[BKY1337]

KT315:

Can i have the Layout files from your small Barracuda Board with partslist? Do you have the Gerber files too?

[dfbowers]

New Baracuda build

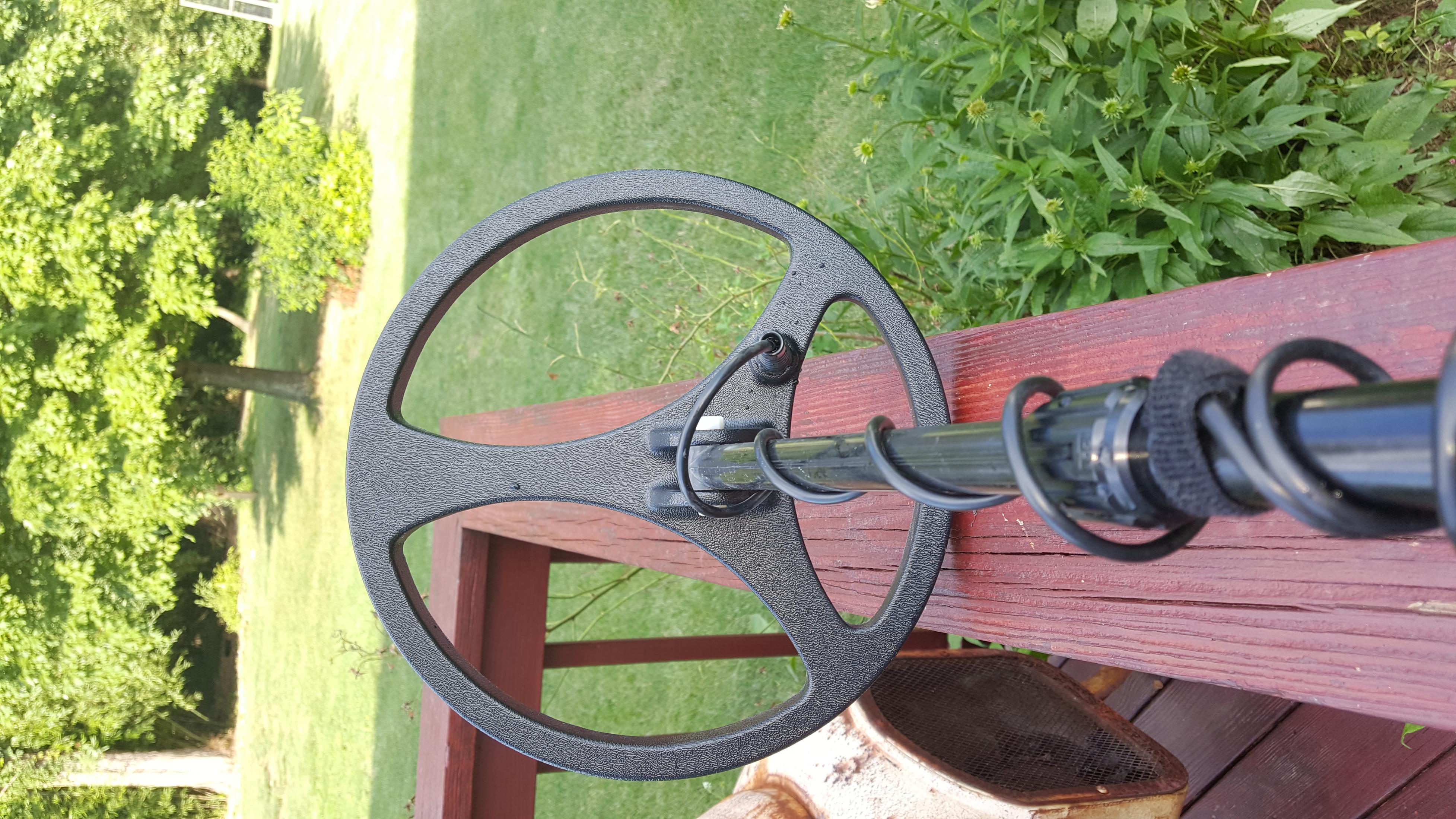

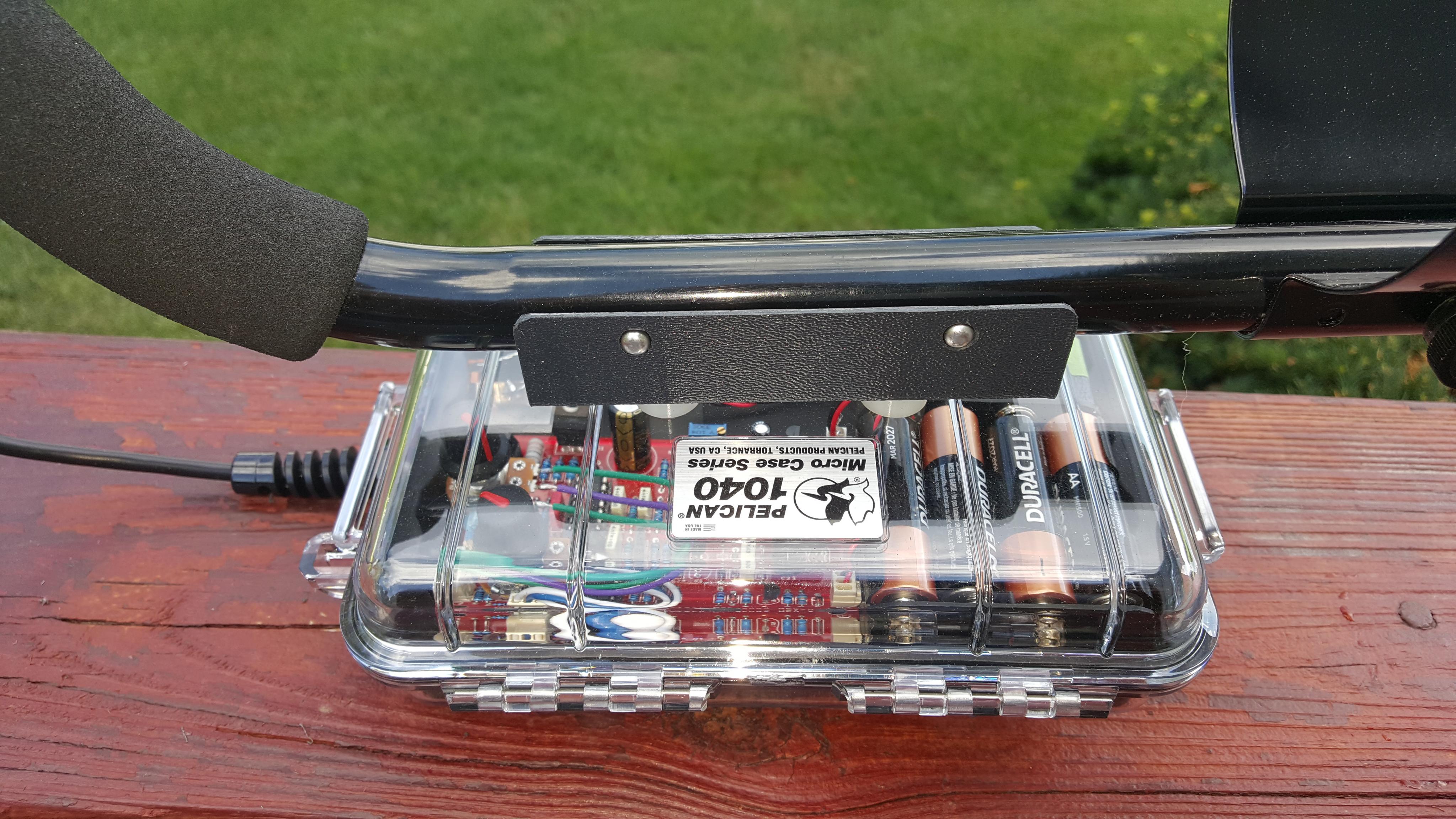

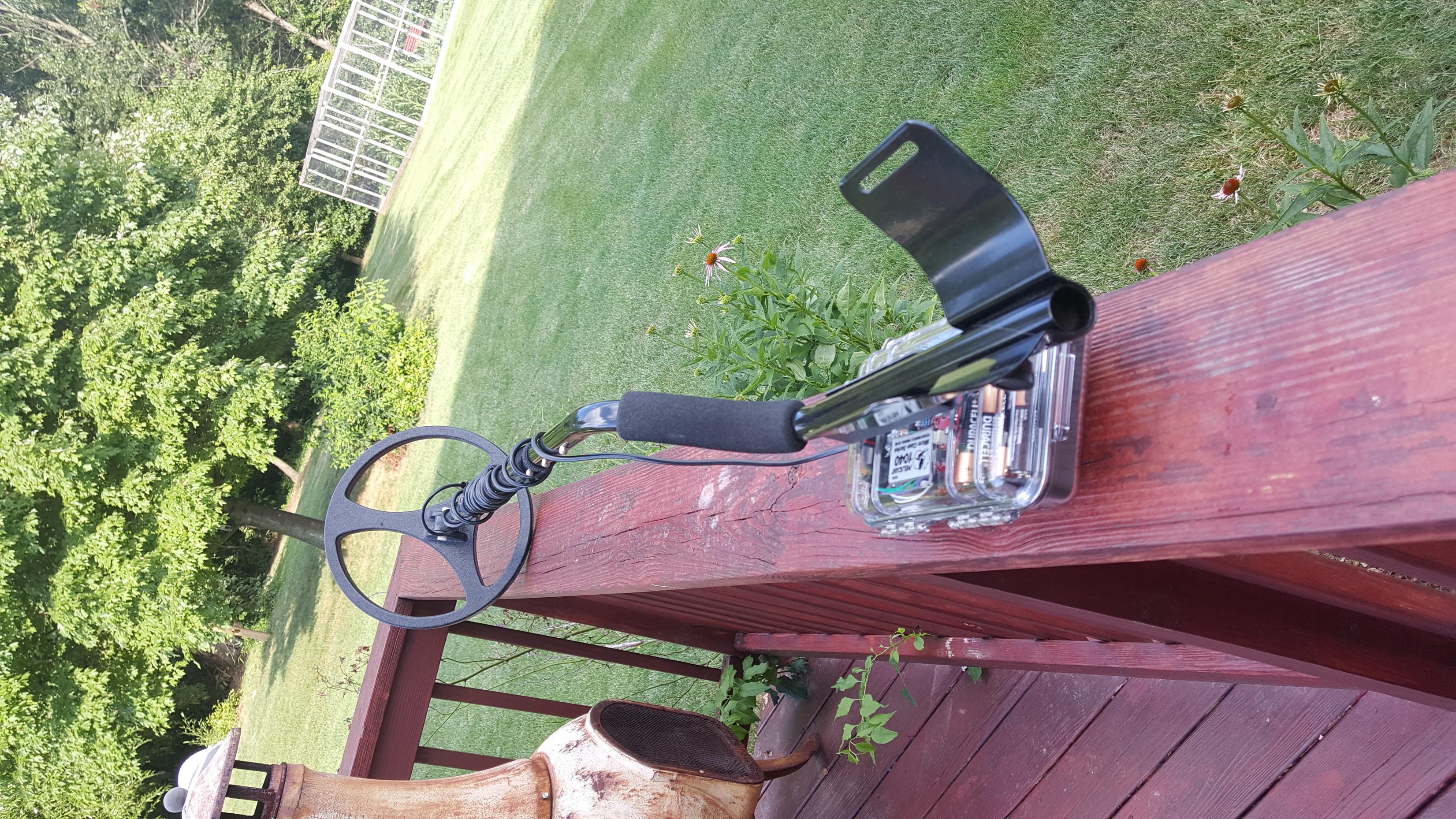

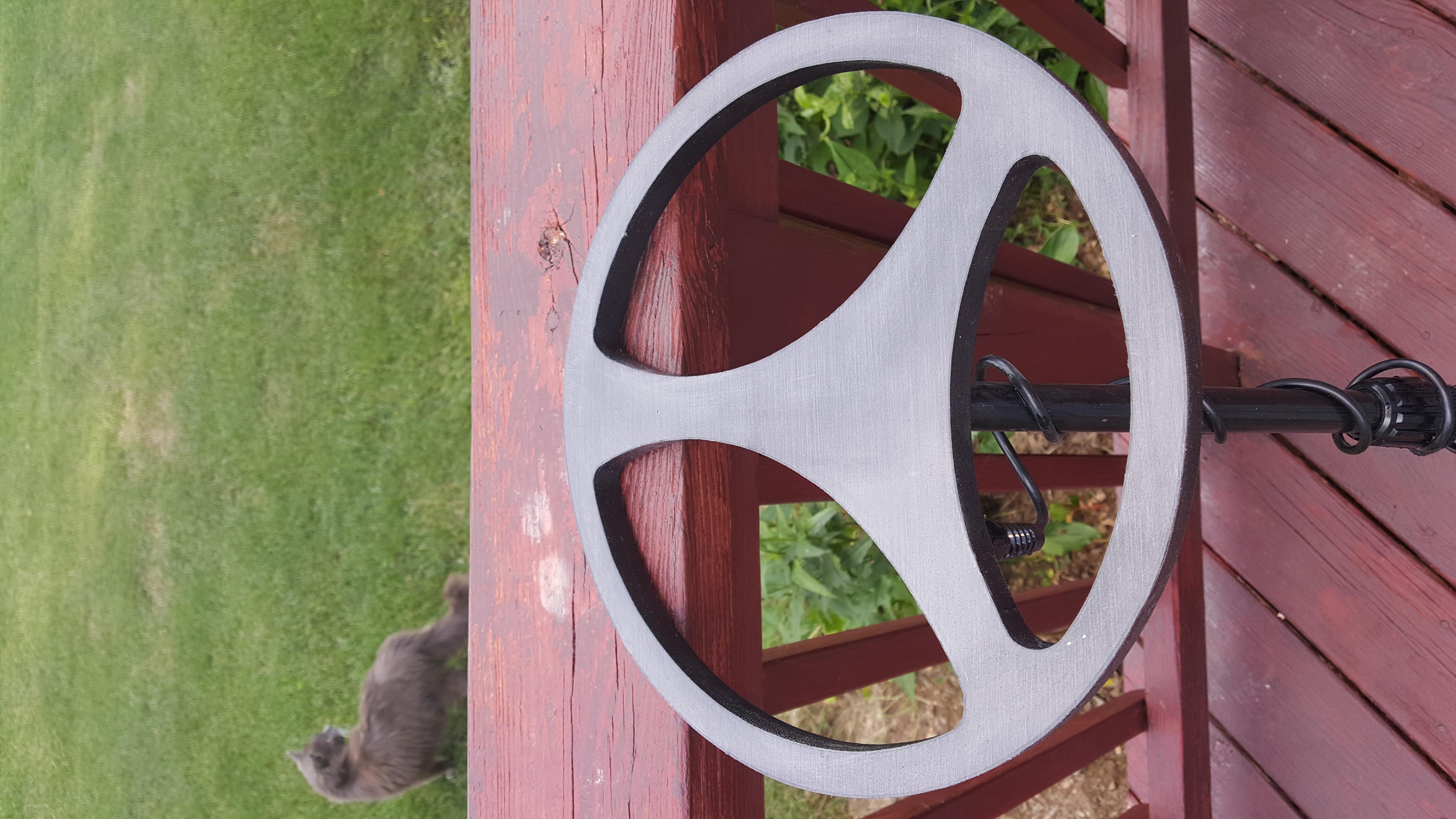

Just finished up another Silverdog kit. Performance is about the best yet for a home built kit. I used Max MCR black a/b potting compound which puts my coil build cost at just over $10.00.
I was skeptial about wire size but 26 AWG enameled magnet wire on a 10.25" form works just fine with a 15us delay.
I'm selling the shells now for $10.00 USD along with a cable strain relief.

[homefire]

Dang, That sure came out NICE !

[ionut_mtb]

Just finished up another Silverdog kit. Performance is about the best yet for a home built kit. I used Max MCR black a/b potting compound which puts my coil build cost at just over $10.00.
I was skeptial about wire size but 26 AWG enameled magnet wire on a 10.25" form works just fine with a 15us delay.
I'm selling the shells now for $10.00 USD along with a cable strain relief.

nice clean project! Congrats. I do not see the speaker/headphone connector. What you use? And what detection depth you get after setup. Thanks
