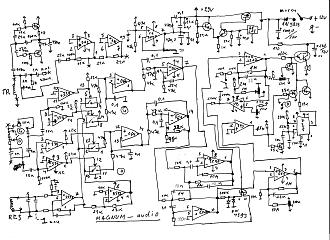

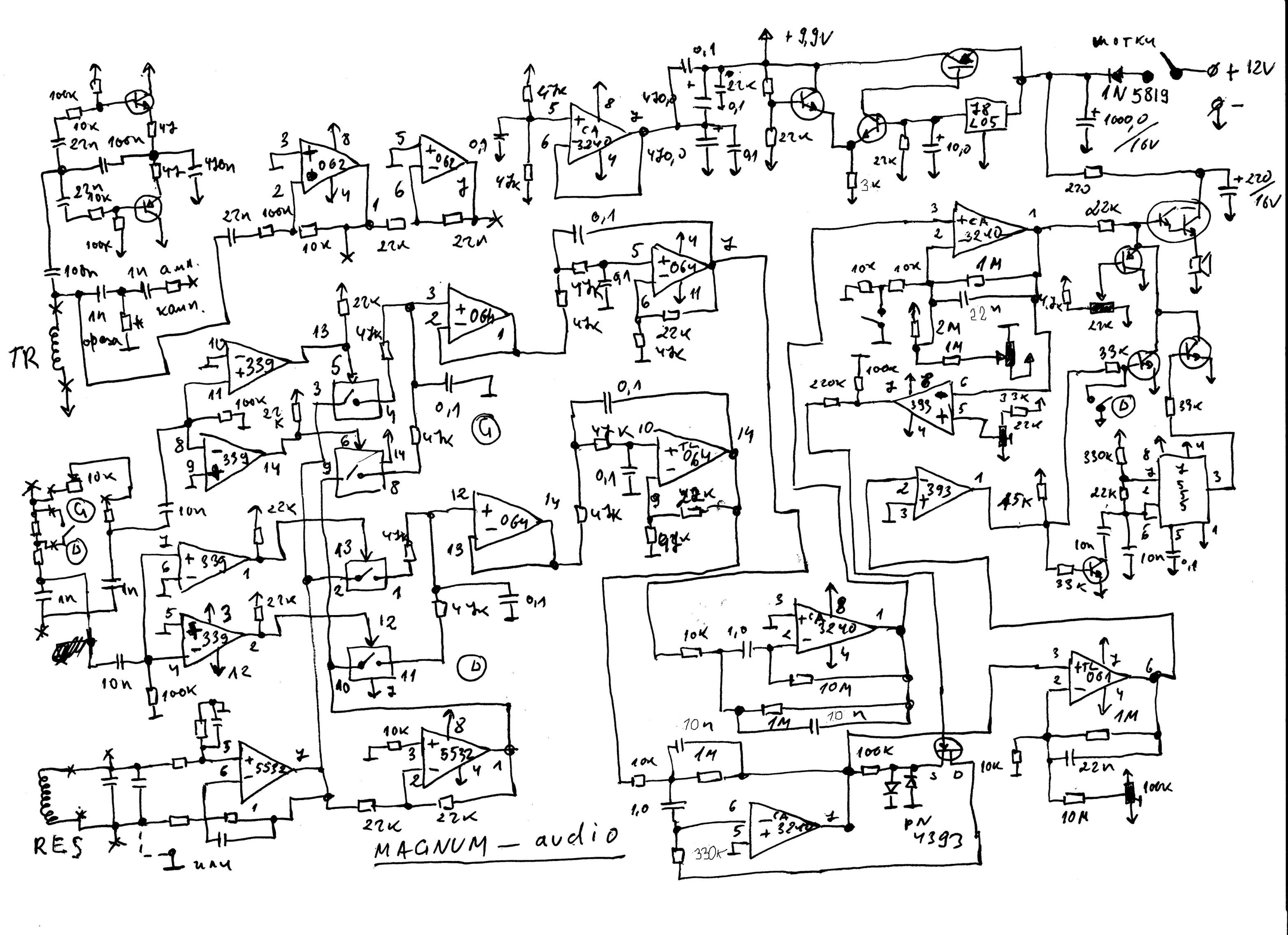

Pulse devices are not always the best option. There is something like a fashion. For example, this old modification of my Magnum works much better. I apologize for the bad appearance of the schematic.

[scs-bg]

[Ruben2000]

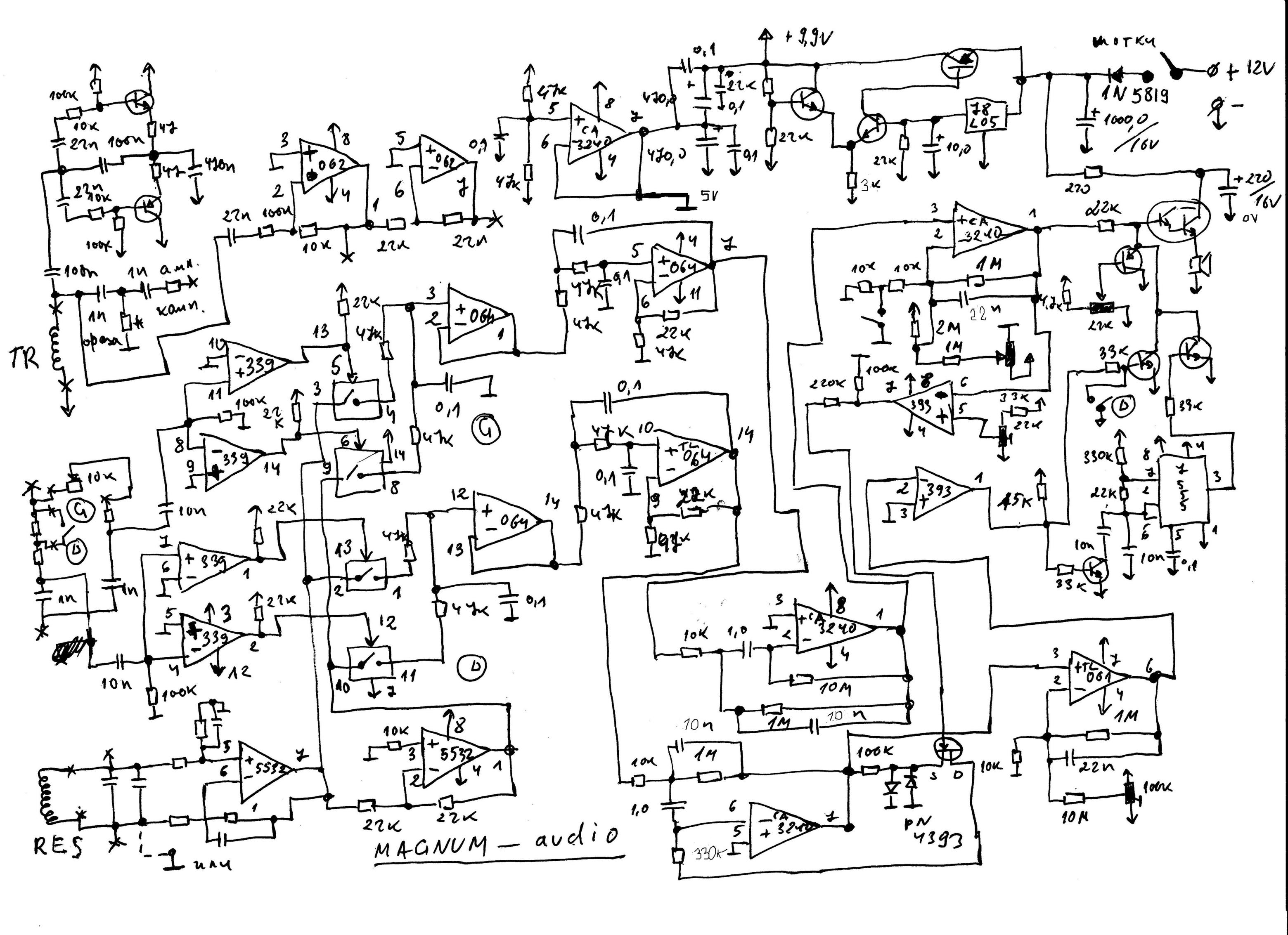

Pulse devices are not always the best option. There is something like a fashion. For example, this old modification of my Magnum works much better. I apologize for the bad appearance of the schematic.

Hi scs-bg, I'd like to draw your schematic so I can make a PCB later. Could you provide more information about some of the missing components?

[Ruben2000]

I once did the Surf PI and was not successful. I hope you publish a PCB with the modifications you plan to make and the points to keep in mind to be successful.

[Qiaozhi]

I once did the Surf PI and was not successful. I hope you publish a PCB with the modifications you plan to make and the points to keep in mind to be successful.

Have you looked at the Arduino Nano PI?
Arduino Nano Pulse Induction Metal Detector Project - Published March 2021

[scs-bg]

I won't post any PCB. You're not little kids. You won't get everything ready-made.

[scs-bg]

The fact that you can't do something that isn't difficult is your problem. This is clearly not for you.

[ArchibaldSTM]

I won't post any PCB.

For what purpose did you show your MOD then? To brag? That's not the done thing here. Then it's not the right topic. This is a flood.

[algan]

The board is working, I made it years ago.

[Ruben2000]

I won't post any PCB. You're not little kids. You won't get everything ready-made.

Friend scs-bg, I greatly respect all your contributions to the Geotech Forum.
I admit I don't know much, not to mention anything about MD, but what I want is to learn; I believe that talking helps us understand each other better. We all have problems, my friend, but let's not let that make us appreciate each other. If you don't want to share something, just say so; I won't be upset; but saying it that way shows the kind of person I am.
Well, everyone can share what they want, and they're not obligated. For my part, I want to contribute what I can to this thread; I'm not asking for everything. The important thing is that we learn from each thread that's been created and try it out in real life to see if it has a good result.

[Ruben2000]

The board is working, I made it years ago.

Thanks a lot, Algán!

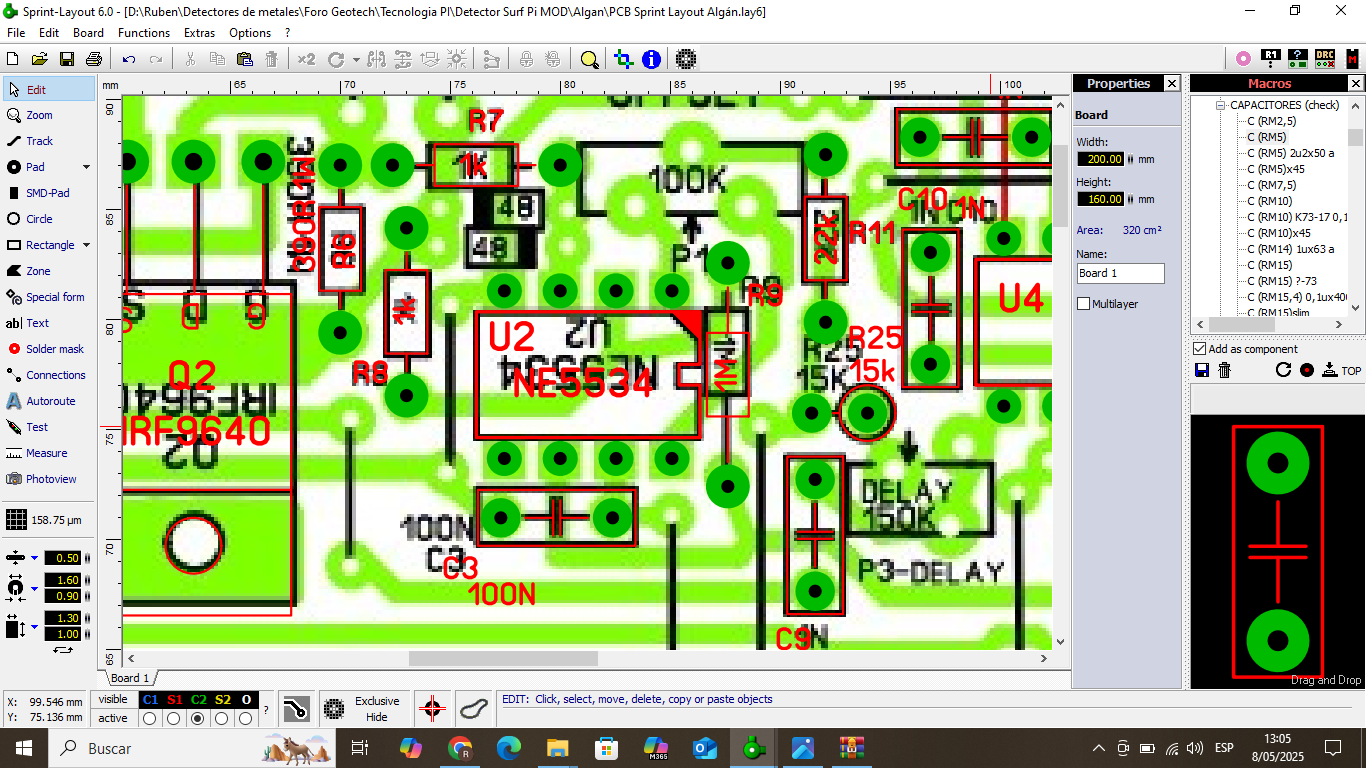

I'll use your dashboard and run it through Sprint Layout so I can give Surf Pi another try.

[algan]

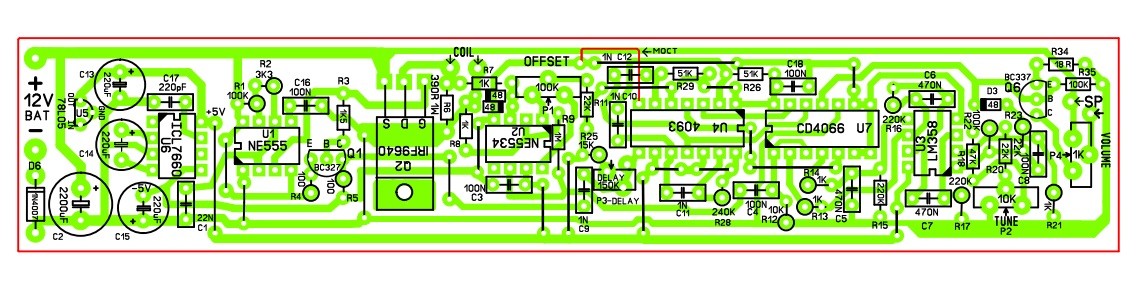

Here is a lay format, look, only the yellow one has a bridge marked that you have to make without touching the other bridge, the rest is clear to you, there are bridges in red, if you want, you can edit it.

[Ruben2000]

Here is a lay format, look, only the yellow one has a bridge marked that you have to make without touching the other bridge, the rest is clear to you, there are bridges in red, if you want, you can edit it.

I was going to ask you about that; thank you so much for clearing it up for me. I was doing it in Sprint Layout. But thank you so much for making my job easier.

[Ruben2000]

I will make the PCB and share pictures of my assembly.
