Whites Beach Hunter ID 300

[GeoMax]

Hi Forums

Does anyone have a circuit diagram for the White's Beach Hunter ID 300? Or what circuit is it based on? Any information is welcome. Thanks...

[WinstonWolf]

Hallo.
I have not schema, but I have got complet Beach Hunter ID 300.

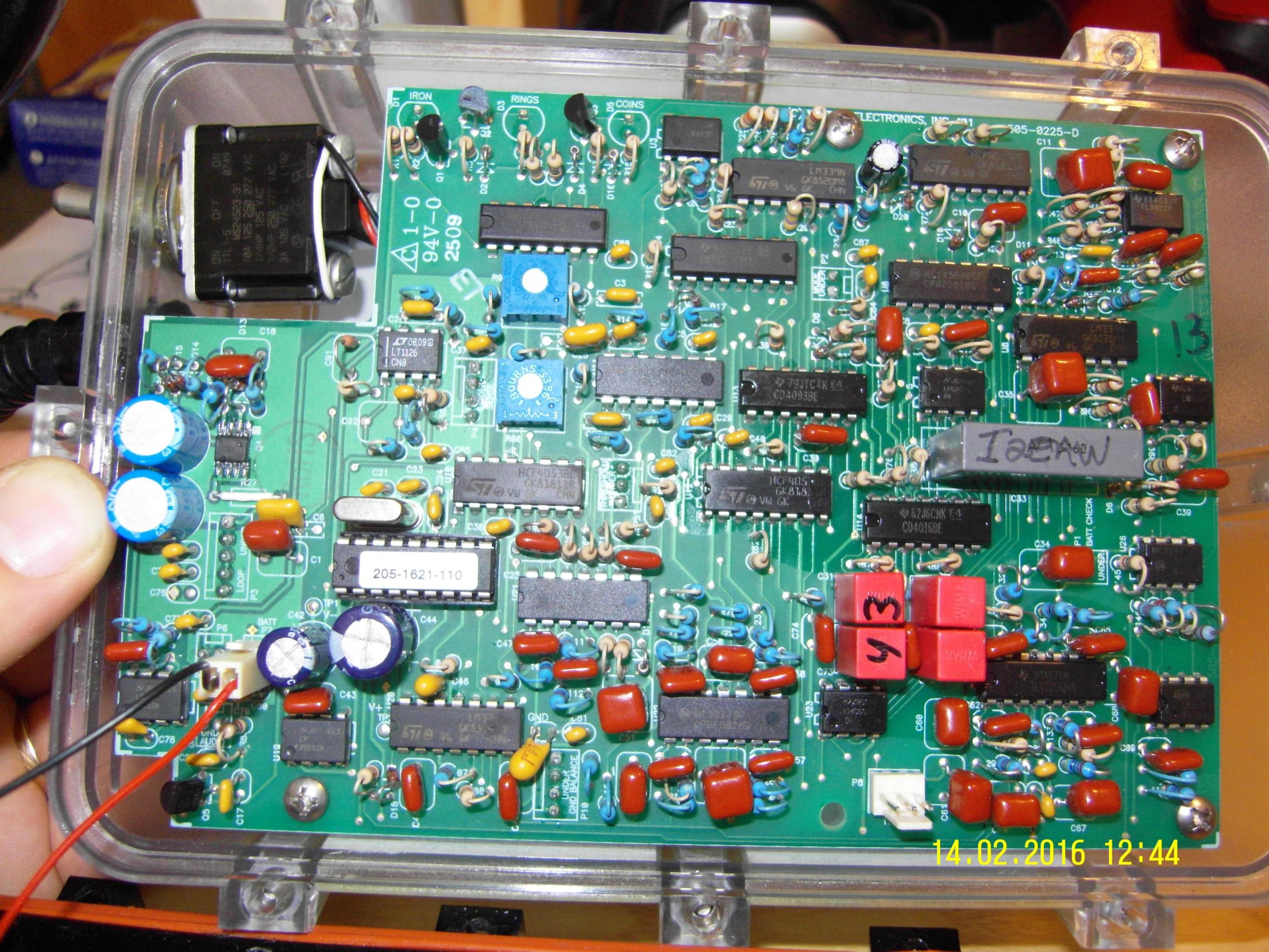

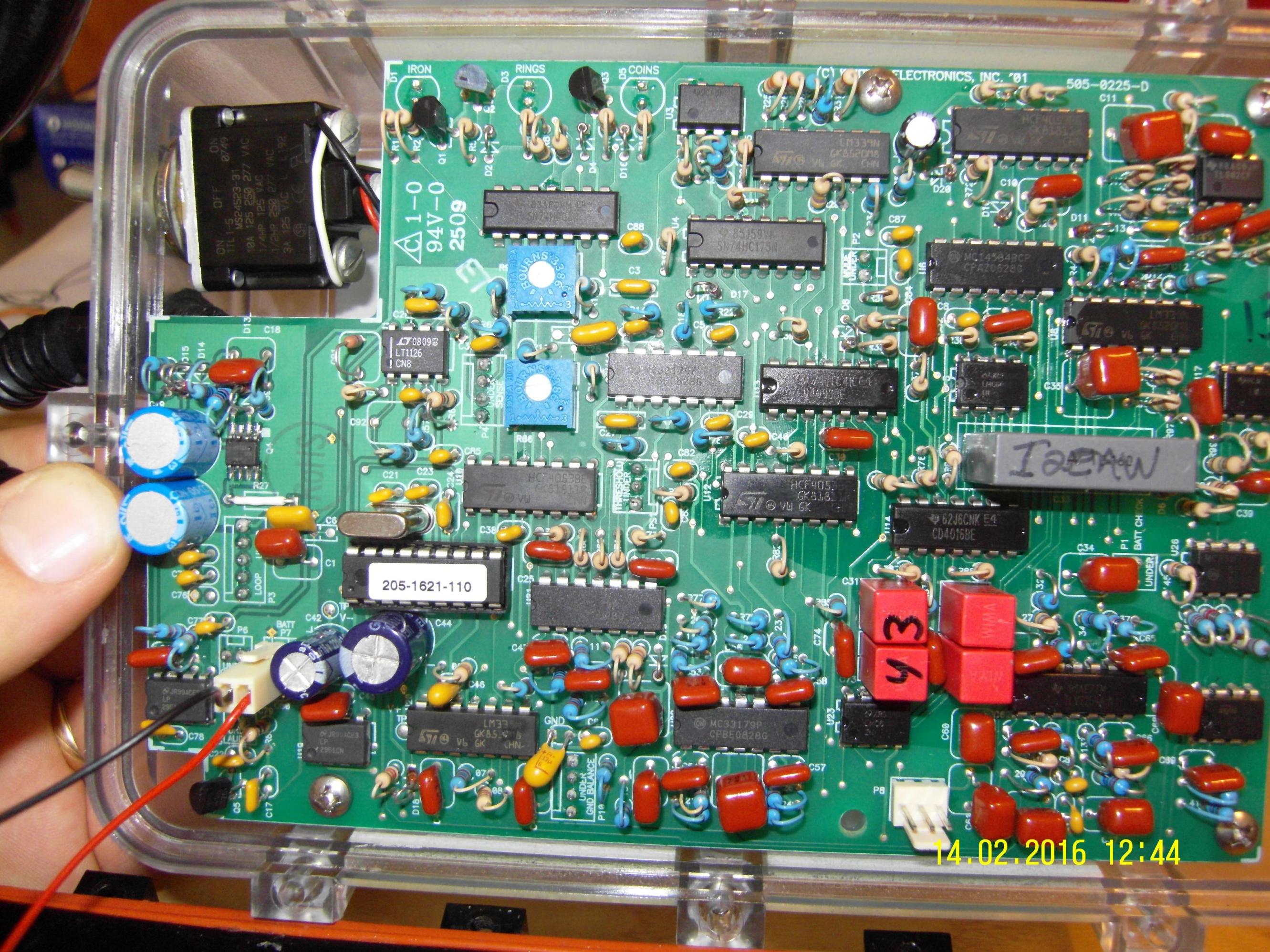

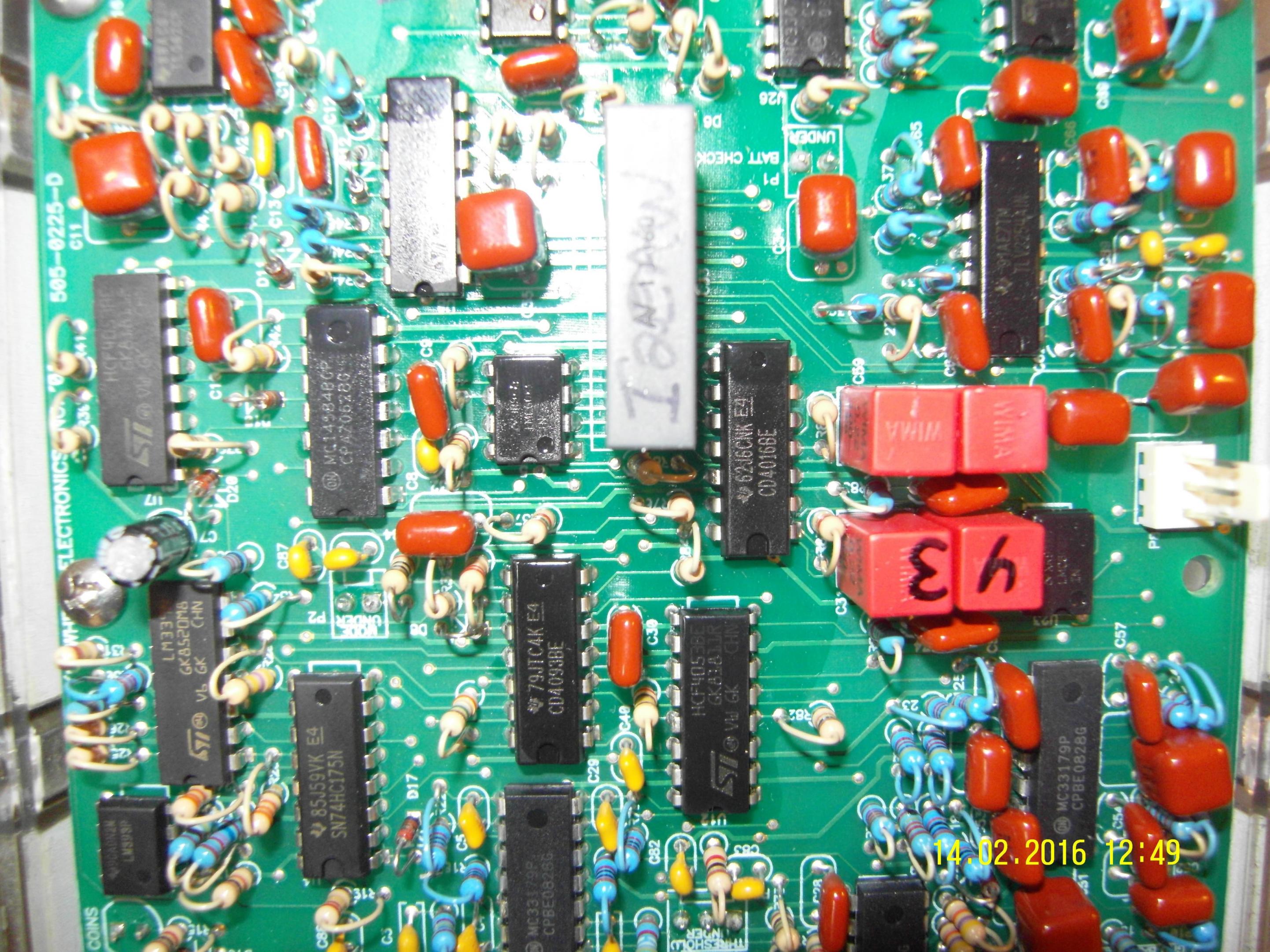

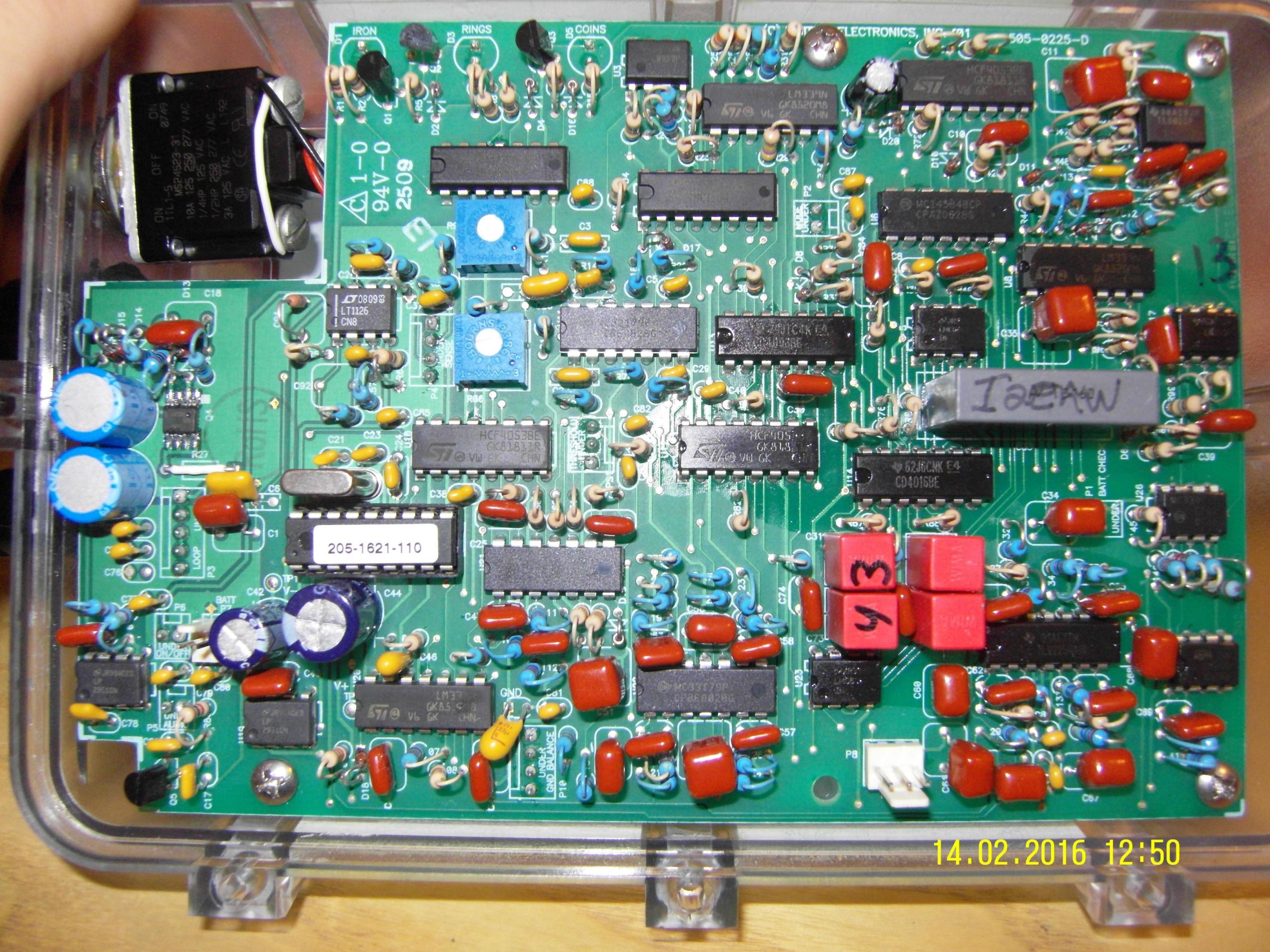

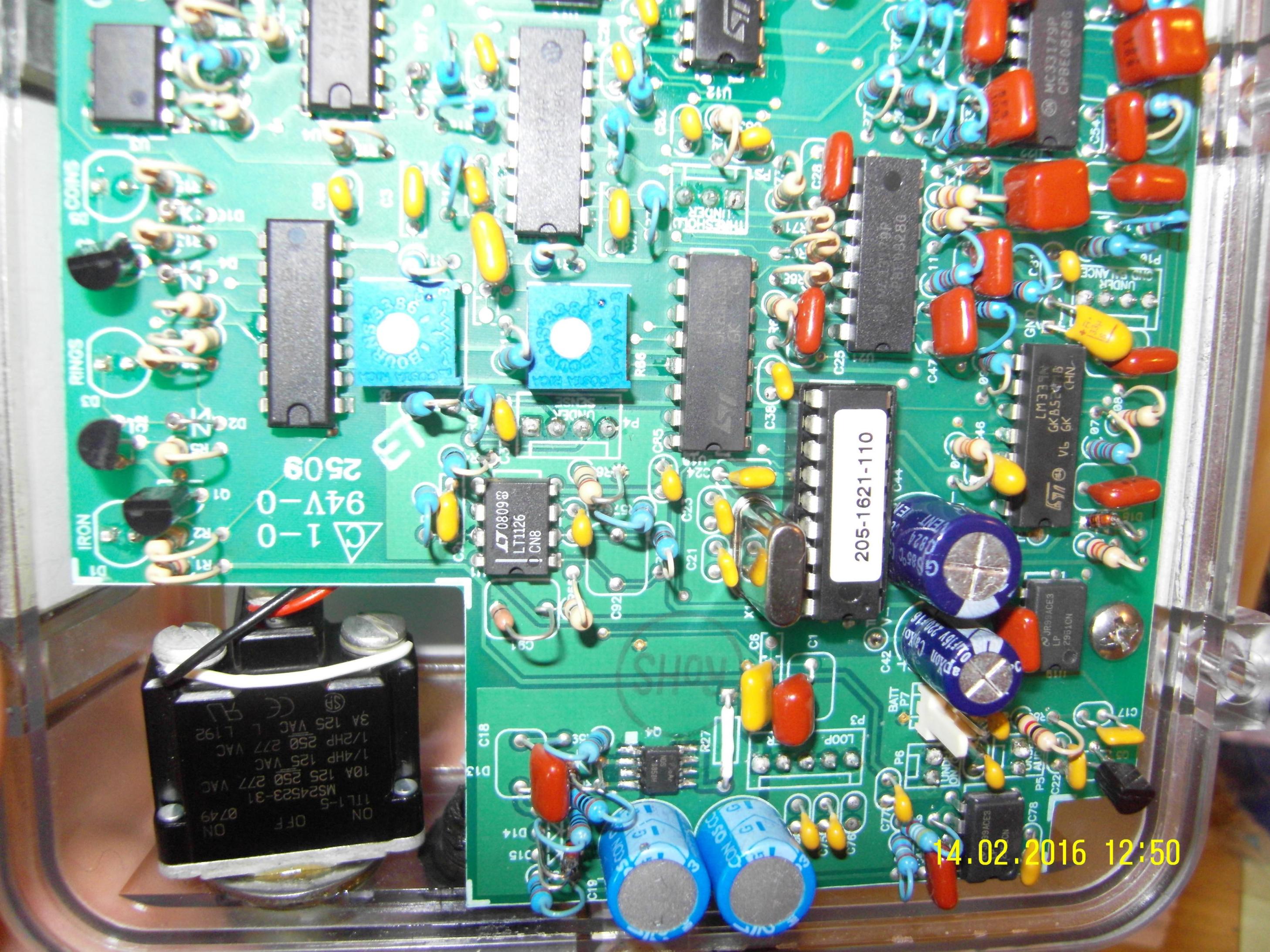

When help it, I try make photos motherboard ;-)
Regards Martin

[Qiaozhi]

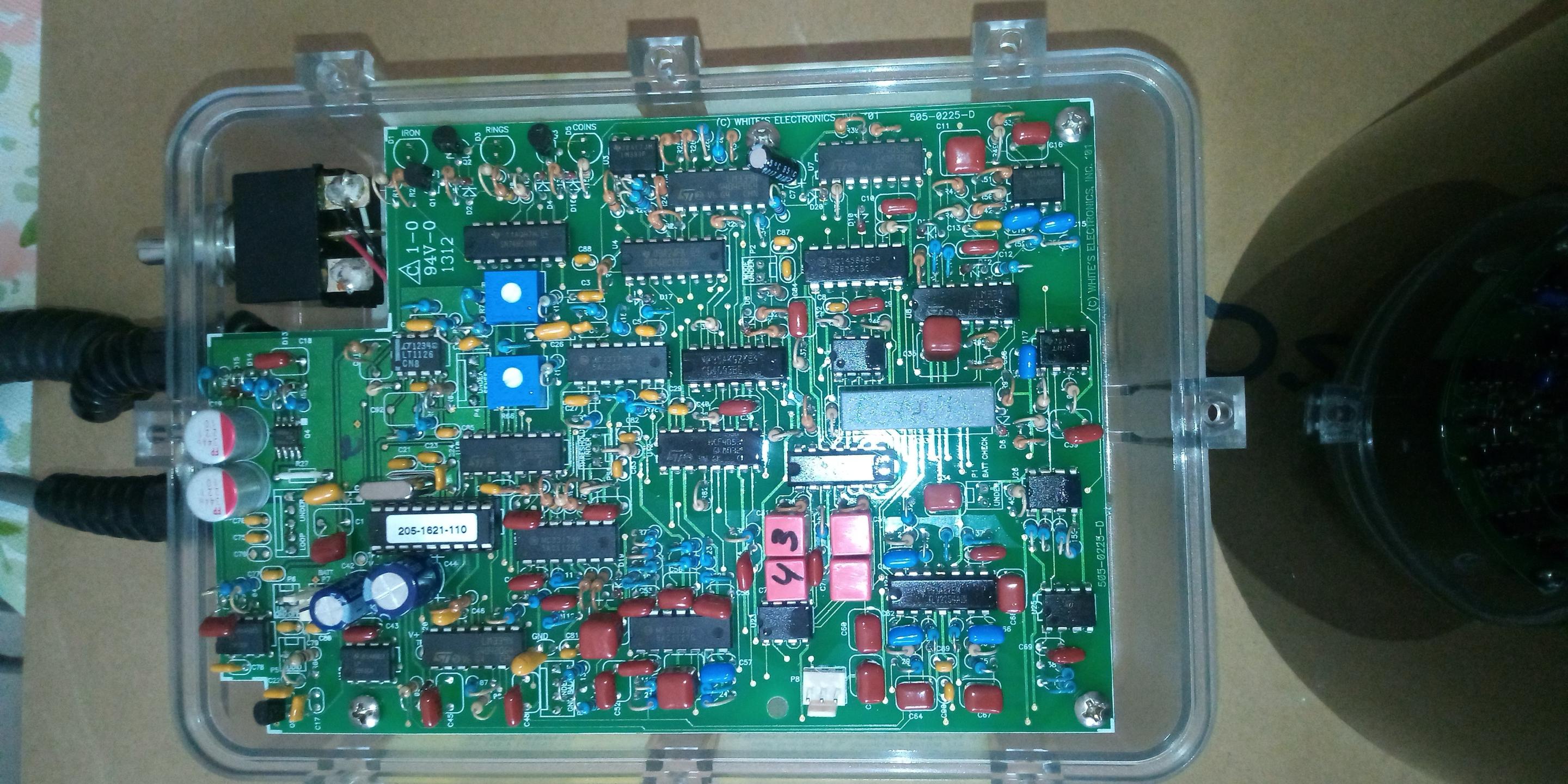

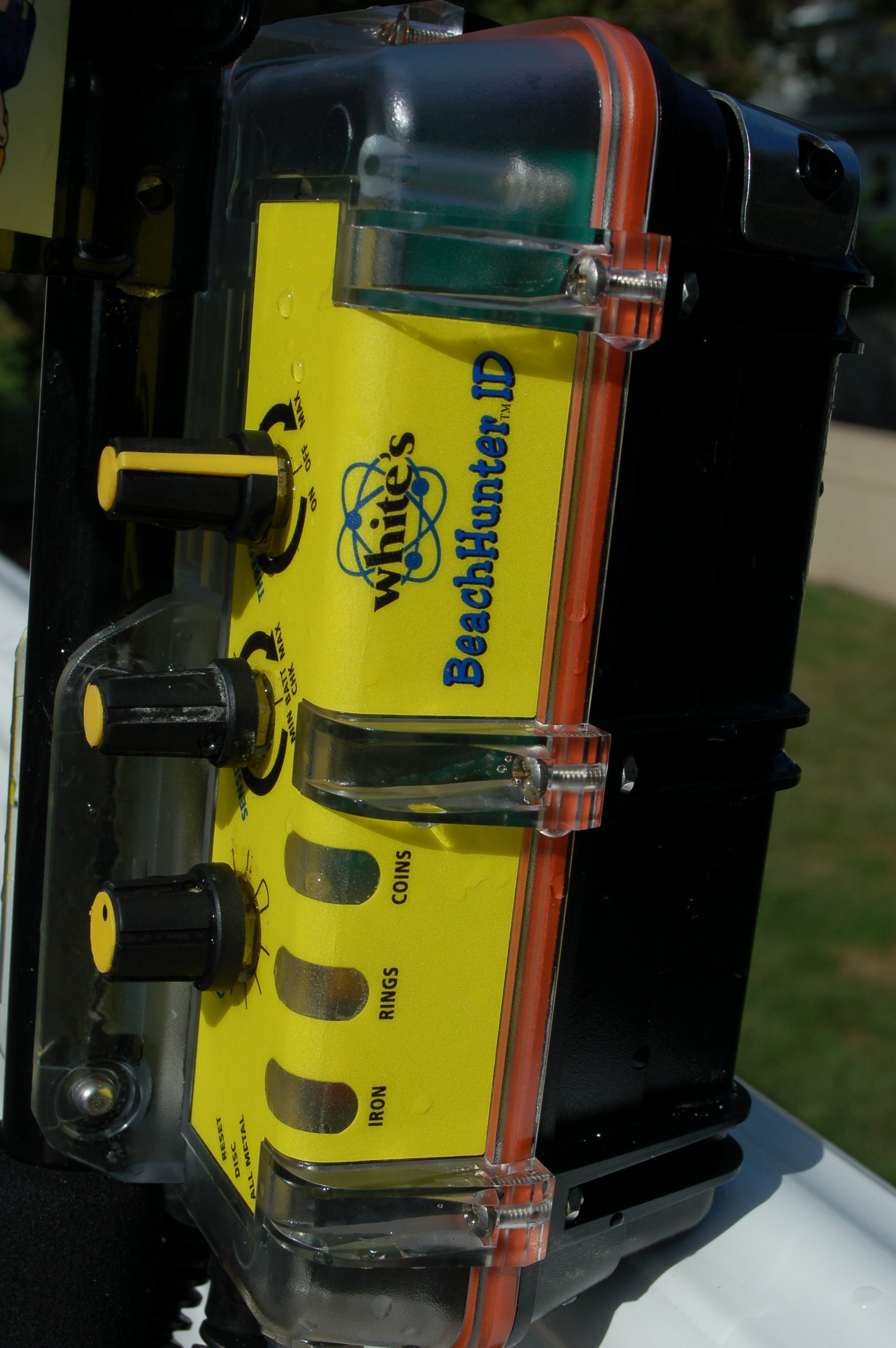

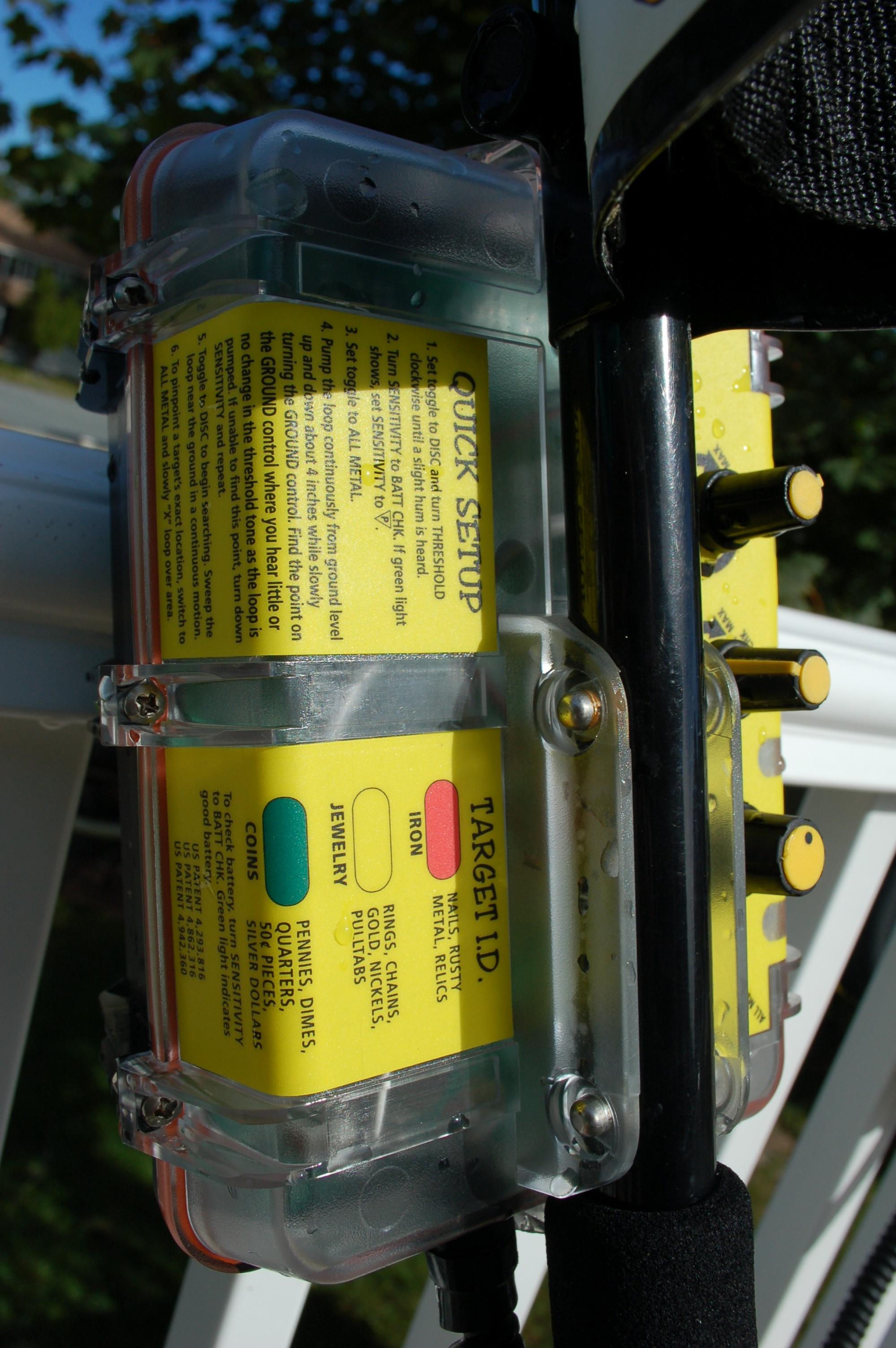

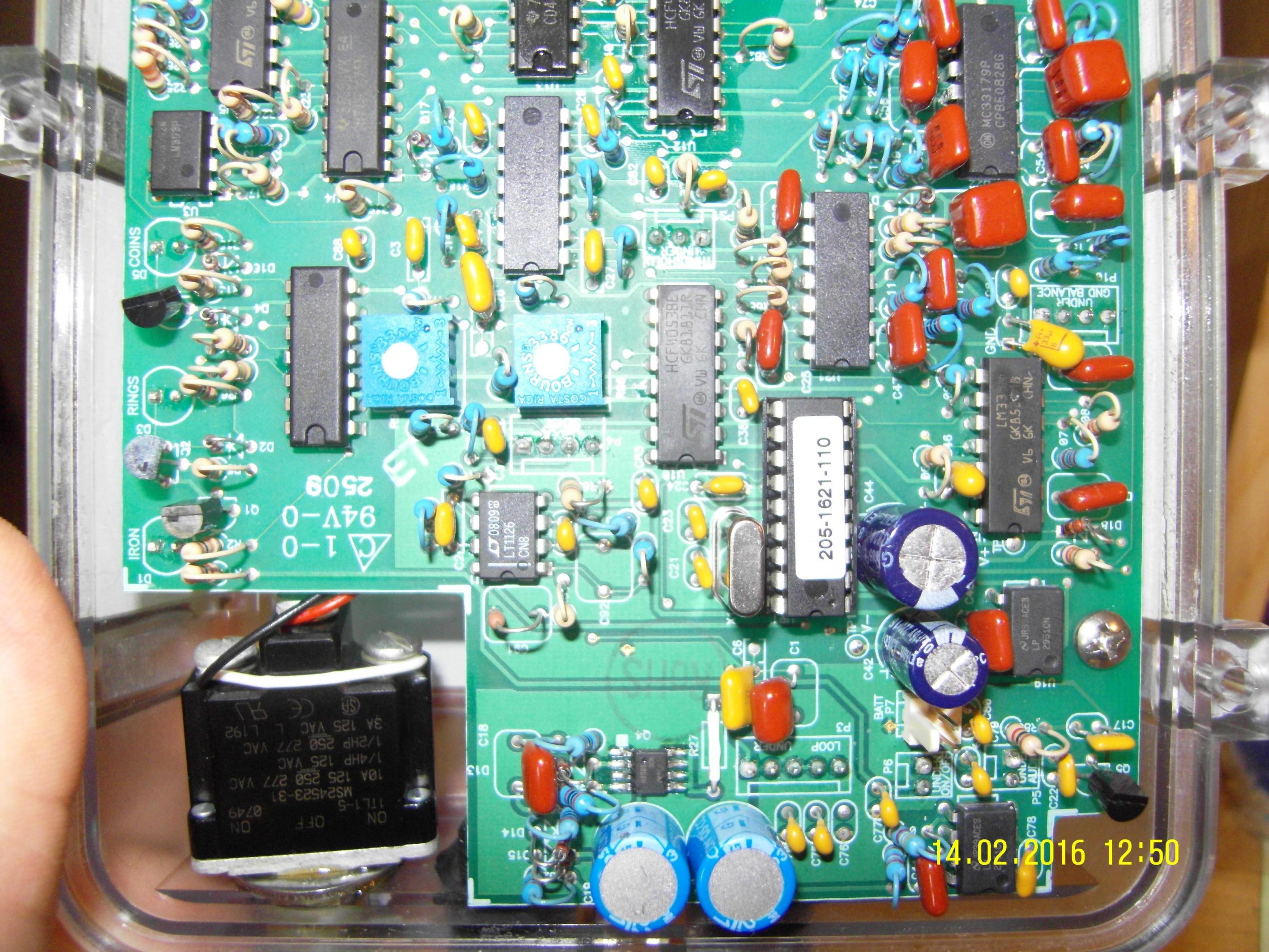

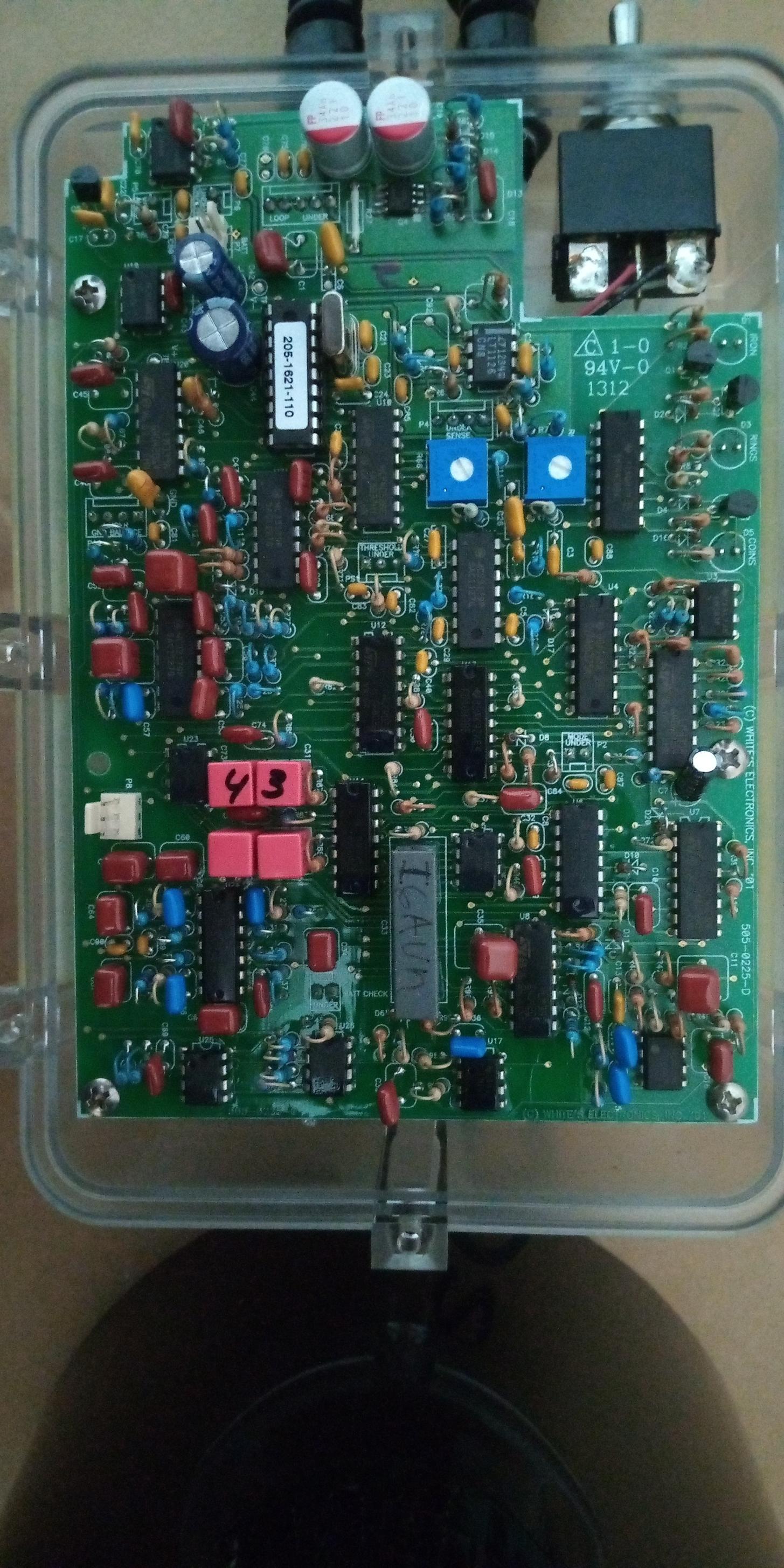

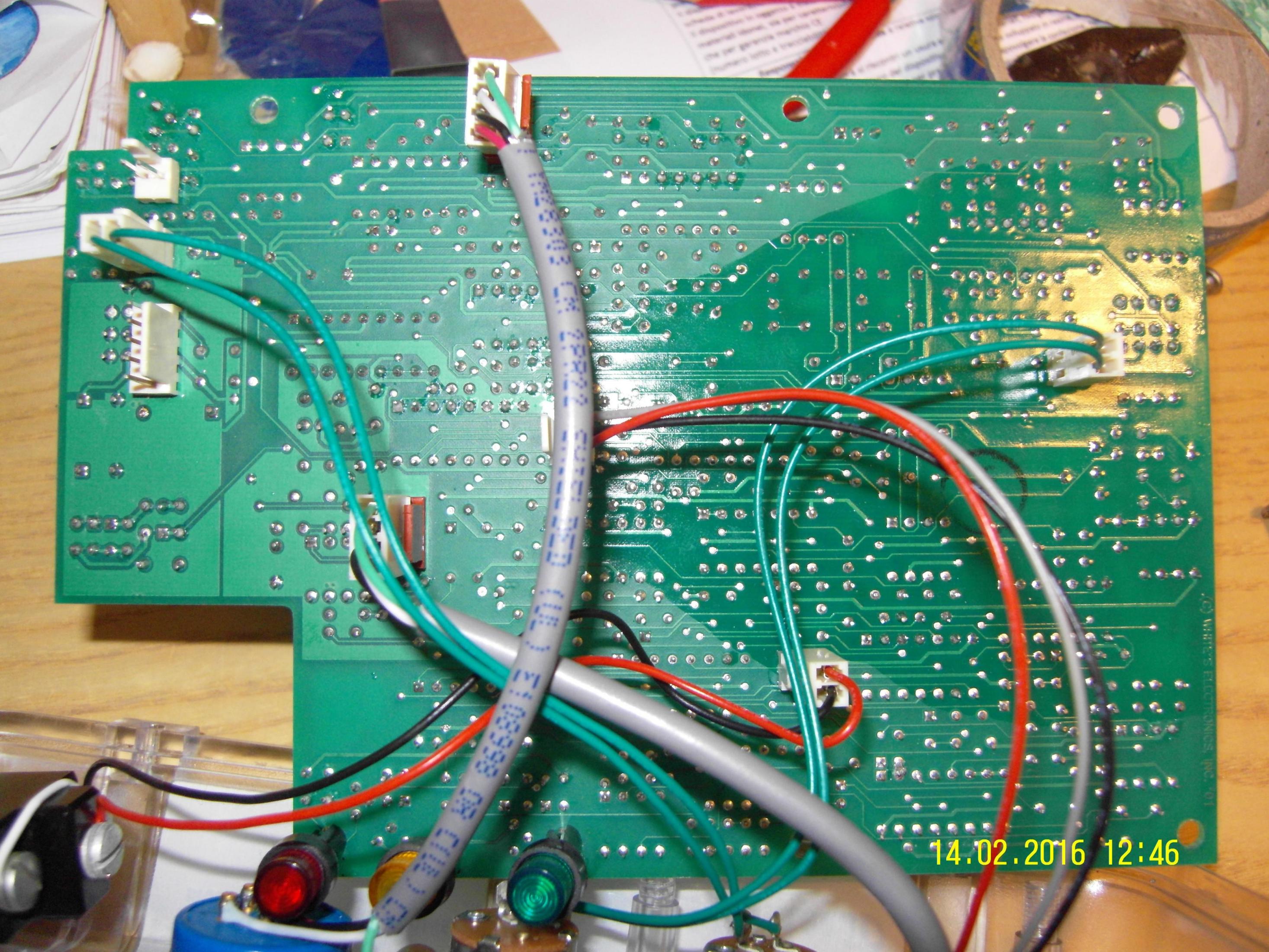

No schematic, but I have some photos.

[kt315]

thinking 5900 6000 DI PRO SL, one of their mods. schematic is not existing.

[eduardo1979]

In my humble opinion, I think this detector has some things in common with the DFX. I'm referring mainly to the analog components and the TX circuit.

[kt315]

Hallo.
I have not schema, but I have got complet Beach Hunter ID 300.
When help it, I try make photos motherboard ;-)
Regards Martin

do IC's Part List (BOM file). it will interested for all geotechers.

[Carl-NC]

The BHID was an all-analog 2-frequency design and a predecessor to the DFX. It has a PIC micro but only for generating timing pulses, whereas the DFX has 2 micros for processing and graphics. The BHID was not based on any prior designs.

[WinstonWolf]

do IC's Part List (BOM file). it will interested for all geotechers.

I've never done it before, I'll try it this weekend. If I can't figure something out, I'll contact you.

[kt315]

I've never done it before, I'll try it this weekend. If I can't figure something out, I'll contact you.

thank you... i see you are without experience.... so I did think to give you Part List like an example. do just ICs part (chips, micros ...), top part of the BOM.

[WinstonWolf]

thank you... i see you are without experience.... so I did think to give you Part List like an example. do just ICs part (chips, micros ...), top part of the BOM.

Thanks for the help. At 50, I'm returning to a childhood hobby ;-)
